Запчасти Case IH FARMALL 65C (90.120.BH[01]) - VAR - 391684 - DRIVER SEAT, FRAME, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

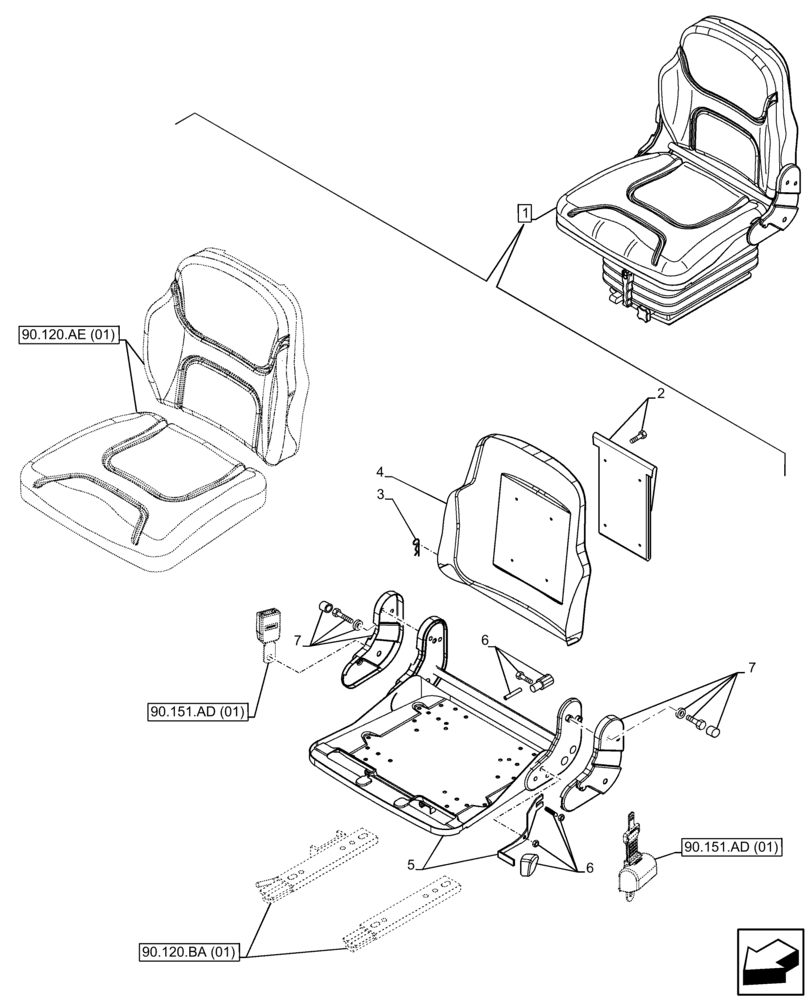

Схема запчастей Case IH FARMALL 65C - (90.120.BH[01]) - VAR - 391684 - DRIVER SEAT, FRAME, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
90.151.ad (01)
5
6
90.120.ba (01)
7
7
4
2
90.120.ae (01)
1
6
90.151.ad (01)

Артикул

Название

Примечание

Количество

1

84347510

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 7

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Figure 90.120.AE (01), 90.120.BA (01), 90.120.BB (01) (02), 90.151.AD (01)

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Cushion Support & Hardware

1шт.

6

47387993

KIT

Hardware

1шт.

7

47388032

KIT

Armrest Covers & Hardware

1шт.

Выбрано товаров: 9
