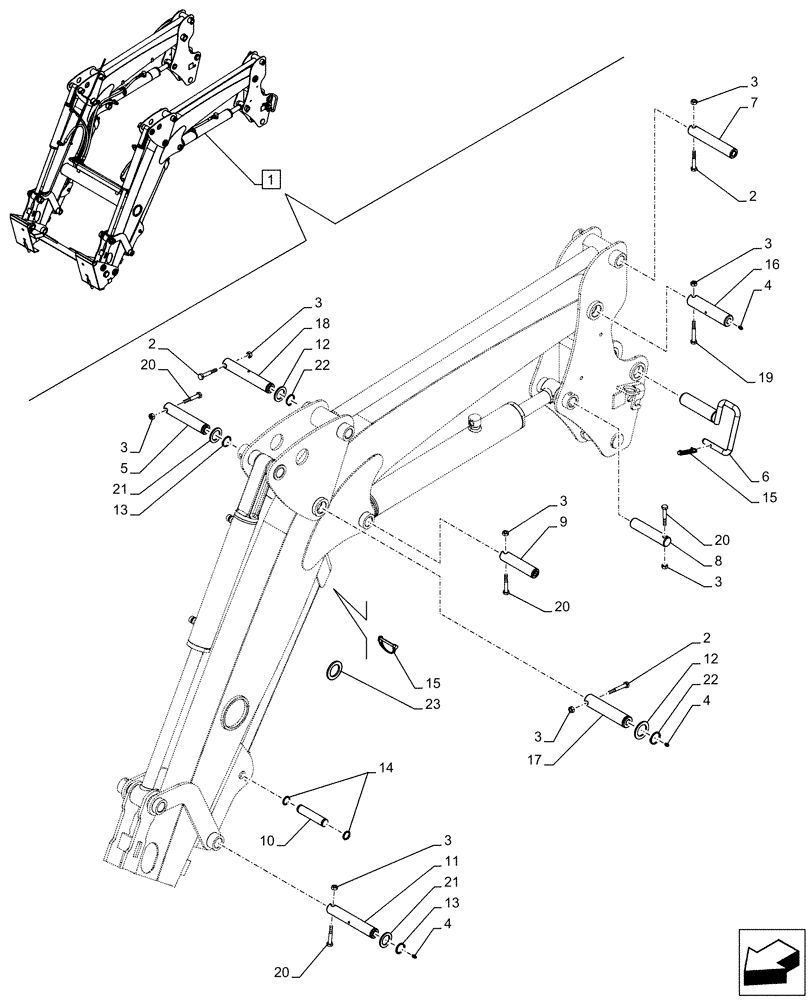

Запчасти Case IH FARMALL 65C (82.100.BG[02]) - VAR - 334489, 339489, 336734, 336736 - LOADER ARM, PIN (SELF LEVELLING) (82) - FRONT LOADER & BUCKET

1

84321725

LOADER

ASSY, Incl 2 - 23

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 334489, 339489, 336734

1шт.

1

47649271

LOADER

ASSY, Incl 2 - 23

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336735

1шт.

1

47556496

LOADER

ASSY, Incl 2 - 23

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336736

1шт.

1

47649265

LOADER

ASSY, Incl 2 - 23

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336739

1шт.

2

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

6шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

14шт.

4

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

6шт.

5

84406160

PIN

2шт.

6

84393576

PIN

2шт.

7

84406162

PIN

2шт.

8

84393585

PIN

2шт.

9

84393753

PIN

2шт.

10

84405805

PIN

2шт.

11

84406123

PIN

ASSY

2шт.

12

84406164

SPACER

4шт.

13

84406125

LOCKING RING

4шт.

14

84406126

LOCKING RING

4шт.

15

84406127

PIN

4шт.

16

84393572

PIN,38mm OD x 167.5mm L

6шт.

17

84406161

PIN

2шт.

18

84511099

PIN

2шт.

19

1537277

BOLT,Hex, M10 x 1.5 x 85mm, Cl 10.9

2шт.

20

1185622

BOLT,Hex, M10 x 65, 10.9

6шт.

21

84406124

SPACER

6шт.

22

84406163

LOCKING RING

4шт.

23

47411907

SHIM,mm ID x 33.5mm OD x 1.5mm Thk

5шт.

23

47411909

SHIM,mm ID x 33.5mm OD x 2mm Thk

5шт.

23

47411904

SHIM,mm ID x 33.5mm OD x 1mm Thk

5шт.

23

84575169

SPACER,39mm OD x 1.5mm L

39.5mm OD x 1.5mm

5шт.

23

84575170

SPACER,39mm OD x 2mm L

39.5mm OD x 2mm

5шт.

23

84575168

SPACER,39mm OD x 1mm L

39.5mm OD x 1mm

5шт.
