(82.100.AF[05]) - VAR - 334489, 339489, 336734, 336736 - LOADER, ARM/LIFTING DEVICE (SELF LEVELLING)

Запчасти Case IH FARMALL 65C (82.100.AF[05]) - VAR - 334489, 339489, 336734, 336736 - LOADER, ARM/LIFTING DEVICE (SELF LEVELLING) (82) - FRONT LOADER & BUCKET

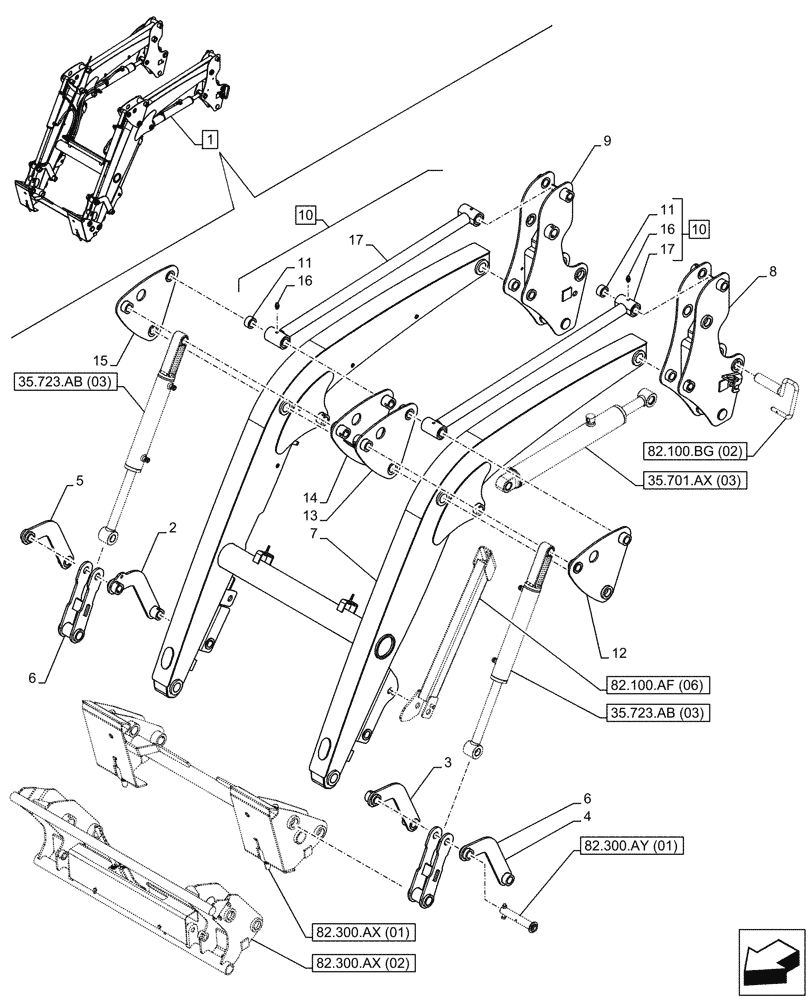

Схема запчастей Case IH FARMALL 65C - (82.100.AF[05]) - VAR - 334489, 339489, 336734, 336736 - LOADER, ARM/LIFTING DEVICE (SELF LEVELLING) (82) - FRONT LOADER & BUCKET
82.300.ax (01)
3
10
10
2
17
6
1
11
4
12
9
6
7
5
15
11
13
16
14
8
16
35.701.ax (03)
35.723.ab (03)
35.723.ab (03)
17
82.300.ay (01)
82.100.af (06)
82.300.ax (02)
82.100.bg (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84321725

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - SSL Tool Attach., Var. 334489, 339489, 336734

1шт.

1

47556496

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336736

1шт.

2

84393710

LEVER

RH, Inner

1шт.

3

84393715

LEVER

LH, Inner

1шт.

4

84393699

LEVER

LH, Outer

1шт.

5

84393693

LEVER

RH, Outer

1шт.

6

84393751

ROD

2шт.

7

84421999

ARM

1шт.

With Bushing, See Figure 82.100.AA, 82.300.AB

1шт.

8

84393661

SUPPORT

LH

1шт.

9

84393659

SUPPORT

RH

1шт.

10

84422281

ROD

ASSY, Incl 11, 16, 17

2шт.

11

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

1.50 ID x 1.375

4шт.

12

84393669

LEVER

LH, Outer

1шт.

13

84393677

LEVER

LH, Inner

1шт.

14

84393683

LEVER

RH, Inner

1шт.

15

84393666

LEVER

RH, Outer

1шт.

16

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12mm

4шт.

17

NSS

NOT SOLD SEPARAT

Rod, Incl in 10

1шт.
