(82.100.AF[04]) - VAR - 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR, (W/ DIVERTER)

Запчасти Case IH FARMALL 65C (82.100.AF[04]) - VAR - 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR, (W/ DIVERTER) (82) - FRONT LOADER & BUCKET

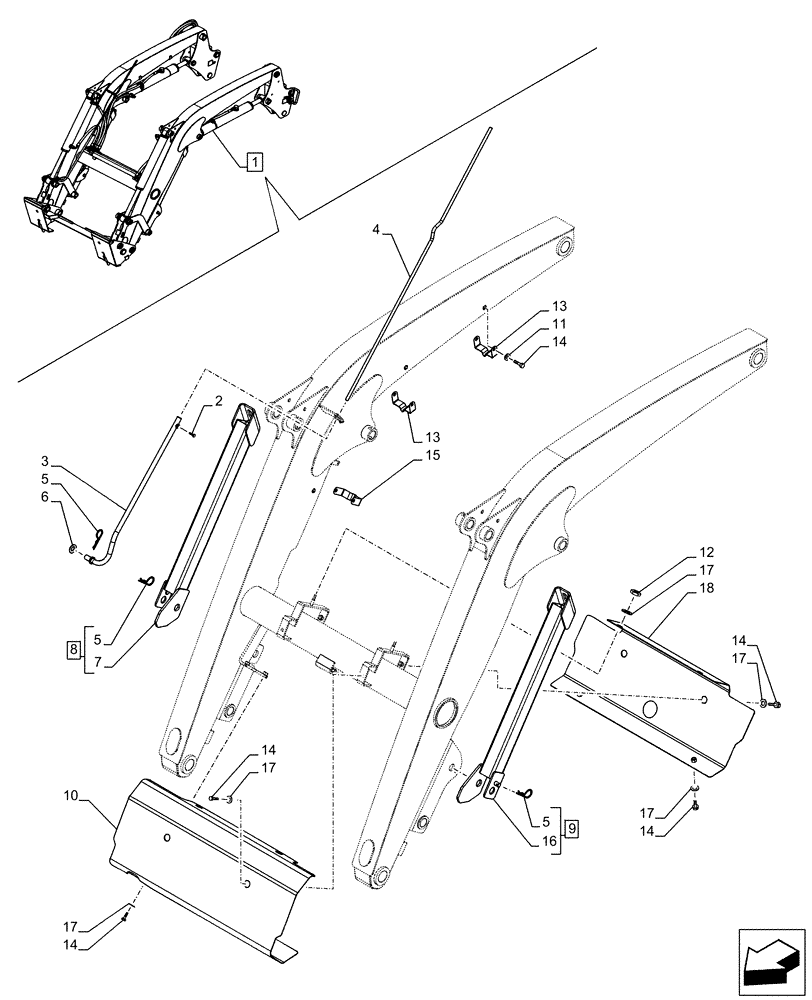

Схема запчастей Case IH FARMALL 65C - (82.100.AF[04]) - VAR - 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR, (W/ DIVERTER) (82) - FRONT LOADER & BUCKET
15
3
14
17
12
9
2
6
13
14
11
8
7
5
10
5
17
14
1
17
13
14
5
16
14
17
4
17
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

3

47657214

CONNECTING LINK

1шт.

4

47406830

INDICATOR

1шт.

5

84408821

ROLL PIN

3шт.

6

84410936

WASHER

1шт.

7

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.

8

84525214

LEVER

RH, ASSY, Incl, 5, 7

1шт.

9

84525220

LEVER

LH, ASSY, Incl, 5, 16

1шт.

10

47518600

COVER

Front

1шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

12

16104117

NUT,Hex, M8 x 1.25

M8

2шт.

13

47608233

RETAINER

2шт.

14

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

14шт.

15

47608229

COVER

1шт.

16

NSS

NOT SOLD SEPARAT

Lever, Incl in 9

1шт.

17

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

10шт.

18

47518602

COVER

Rear

1шт.
