(82.100.AF[02]) - VAR - 333489, 335489, 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR

Запчасти Case IH FARMALL 65C (82.100.AF[02]) - VAR - 333489, 335489, 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR (82) - FRONT LOADER & BUCKET

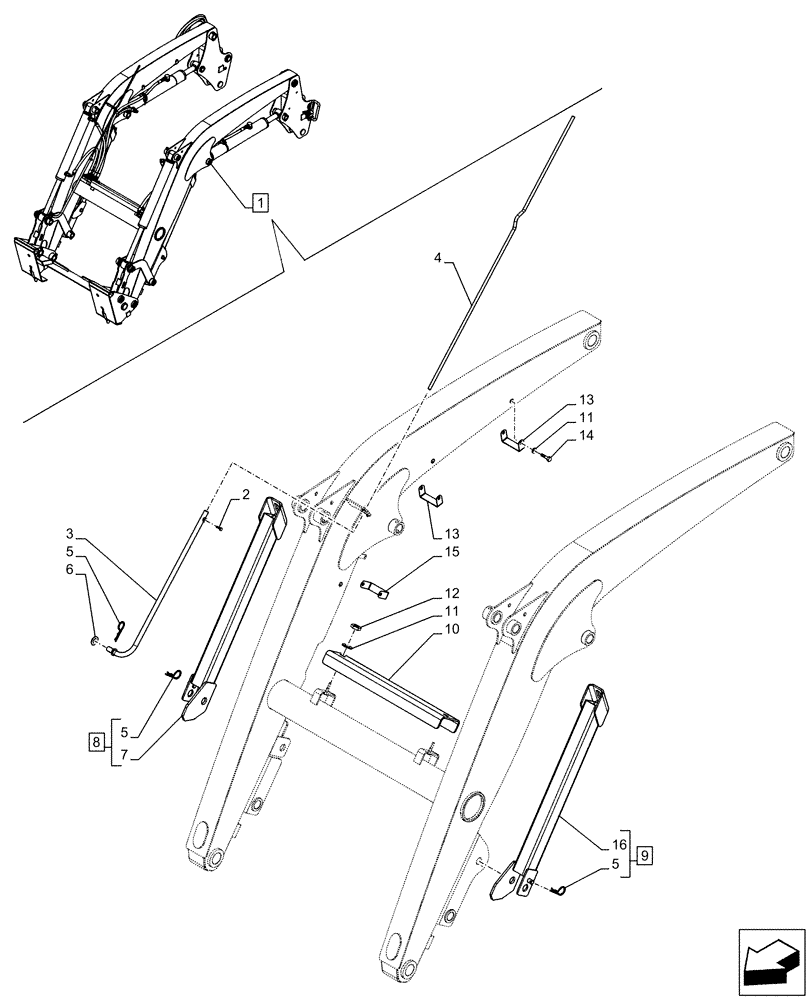

Схема запчастей Case IH FARMALL 65C - (82.100.AF[02]) - VAR - 333489, 335489, 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR (82) - FRONT LOADER & BUCKET
15
9
5
5
5
12
3
14
11
16
11
1
2
6
10
13
13
8
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84321724

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - SSL Tool Attach., Var. 333489, 335489, 336914

1шт.

1

47556494

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - EU Tool Attach., Var. 336732

1шт.

2

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

3

84405800

LEVEL INDICATOR

1шт.

4

47406830

INDICATOR

1шт.

5

84408821

ROLL PIN

3шт.

6

84410936

WASHER

1шт.

7

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.

8

84525214

LEVER

RH, ASSY, Incl, 5, 7

1шт.

9

84525220

LEVER

LH, ASSY, Incl, 5, 16

1шт.

10

84393589

COVER

1шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

12

16104117

NUT,Hex, M8 x 1.25

M8

2шт.

13

84405802

FIXING PLATE

2шт.

14

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

6шт.

15

84526944

COVER

1шт.

16

NSS

NOT SOLD SEPARAT

Lever, Incl in 9

1шт.
