(55.510.AH) - VAR - 336754, 391754 - HARNESS, ROOF-MOUNTED, CAB

Запчасти Case IH FARMALL 65C (55.510.AH) - VAR - 336754, 391754 - HARNESS, ROOF-MOUNTED, CAB (55) - ELECTRICAL SYSTEMS

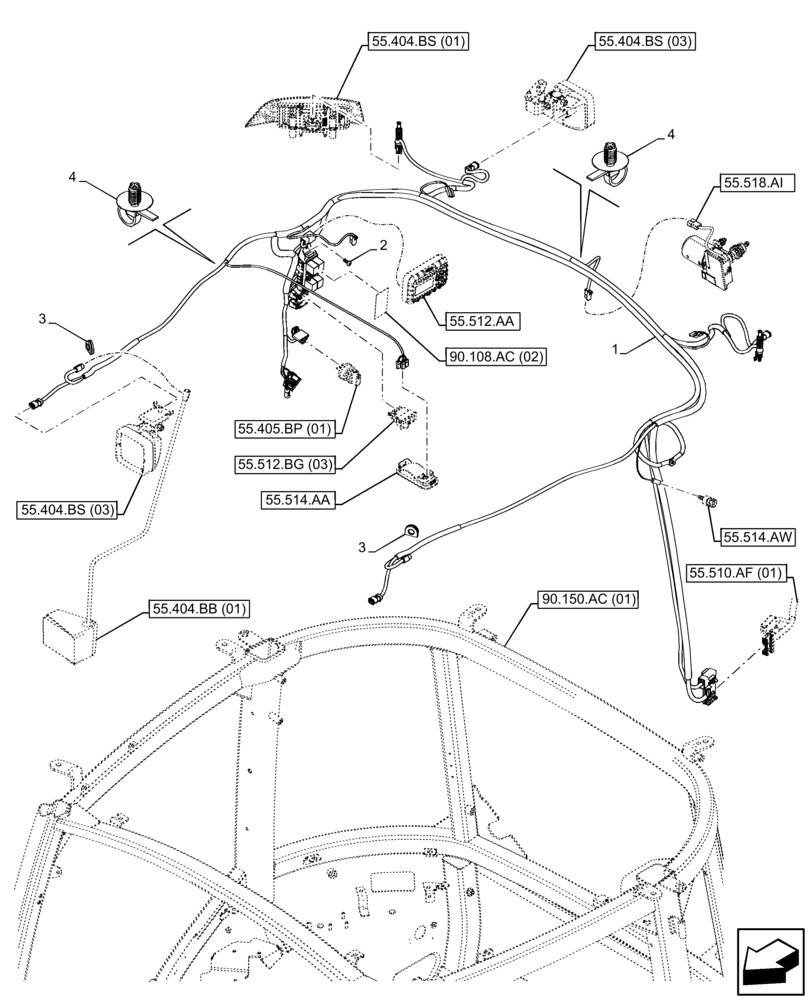

Схема запчастей Case IH FARMALL 65C - (55.510.AH) - VAR - 336754, 391754 - HARNESS, ROOF-MOUNTED, CAB (55) - ELECTRICAL SYSTEMS
55.512.aa
1
55.518.ai
90.108.ac (02)
55.514.aa
55.514.aw
55.510.af (01)
2
3
4
55.404.bb (01)
55.405.bp (01)
90.150.ac (01)
55.512.bg (03)
55.404.bs (03)
55.404.bs (03)
3
55.404.bs (01)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47408058

ELECTRICAL WIRE

1шт.

2

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

3

84573694

RUBBER SEAL

2шт.

4

82033028

CABLE TIE,170mm L

170mm

2шт.

Выбрано товаров: 4
