(55.024.AA[02]) - VAR - 330069, 333068, 333069, 390068 - TRANSMISSION, HARNESS, BRACKETS

Запчасти Case IH FARMALL 65C (55.024.AA[02]) - VAR - 330069, 333068, 333069, 390068 - TRANSMISSION, HARNESS, BRACKETS (55) - ELECTRICAL SYSTEMS

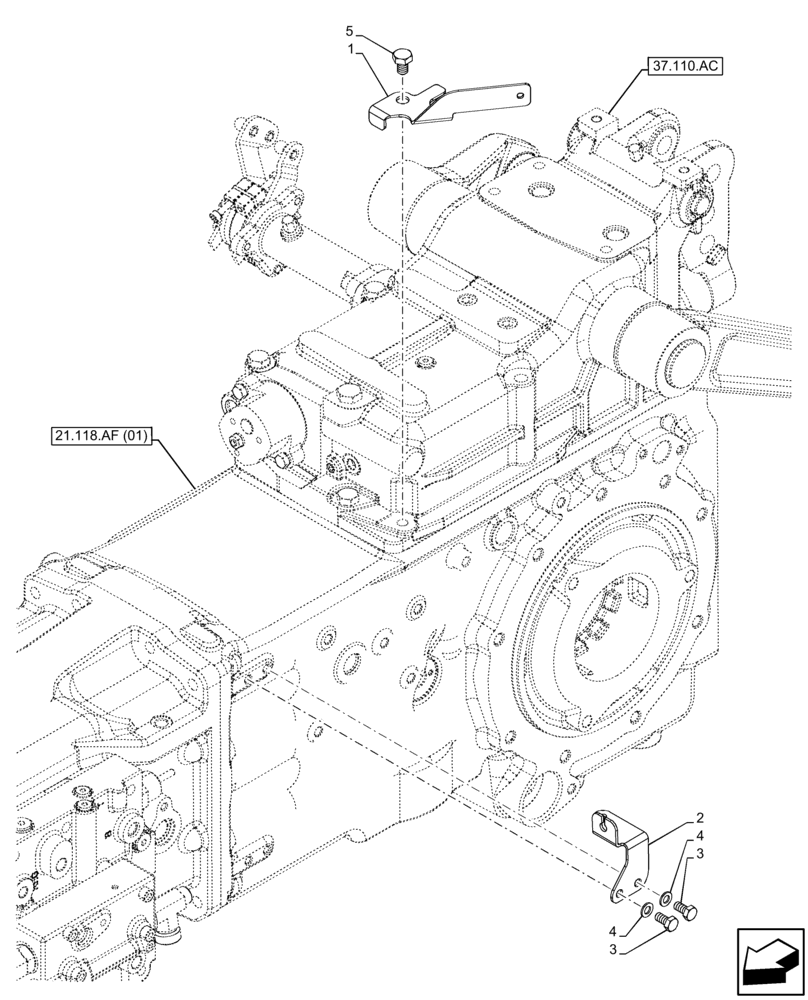

Схема запчастей Case IH FARMALL 65C - (55.024.AA[02]) - VAR - 330069, 333068, 333069, 390068 - TRANSMISSION, HARNESS, BRACKETS (55) - ELECTRICAL SYSTEMS
5
21.118.af (01)
2
3
37.110.ac
1
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84273785

BRACKET

Base Transmission

1шт.

2

84390071

BRACKET

Transmission

1шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

4

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

5

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.
