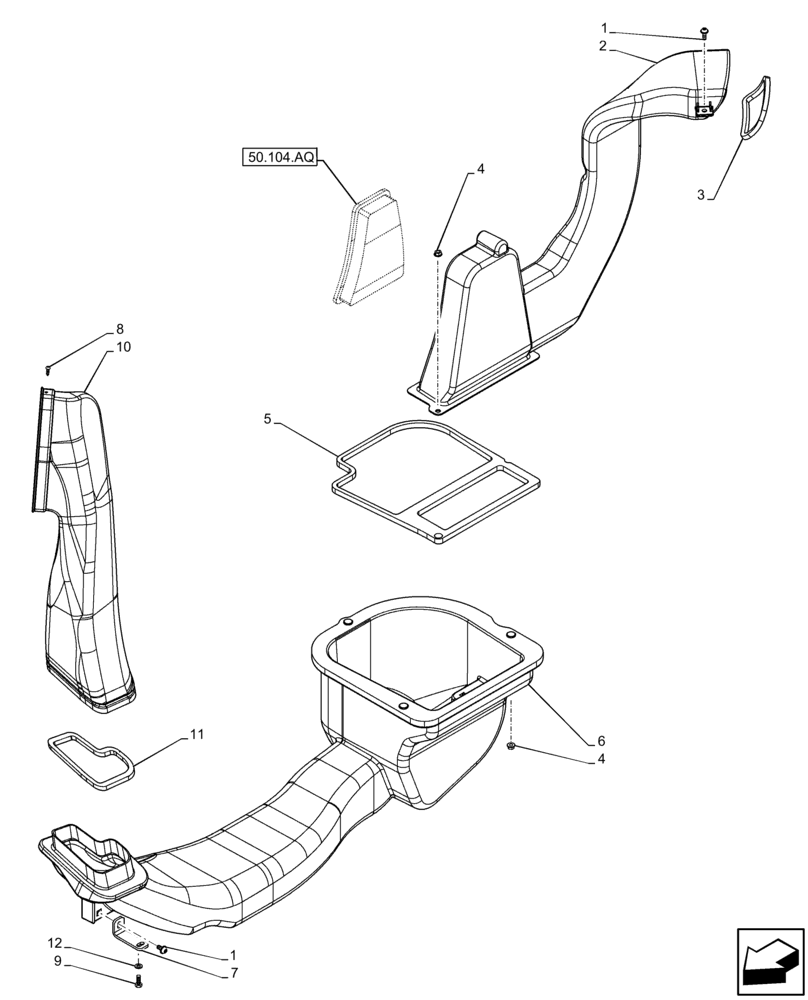

Запчасти Case IH FARMALL 65C (50.104.AO[02]) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - AIR CONDITIONER, DUCT, LH (50) - CAB CLIMATE CONTROL

1

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

4шт.

2

84268726

AIR DUCT

LH

1шт.

3

47526938

GASKET,Section, 15mm x 20mm

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

5

84221402

GASKET

LH Rear

1шт.

6

84221818

AIR DUCT

LH

1шт.

7

84332658

BRACKET

1шт.

8

5182260

SELF-TAP SCREW,M5 x 16mm L

1шт.

9

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

10

84222342

AIR DUCT

LH Console

1шт.

11

84350446

GASKET

1шт.

12

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

1шт.
