Запчасти Case IH FARMALL 65C (35.723.AB[02]) - VAR - 336732, 336914 - BUCKET CYLINDER, LINES (W/ DIVERTER) (35) - HYDRAULIC SYSTEMS

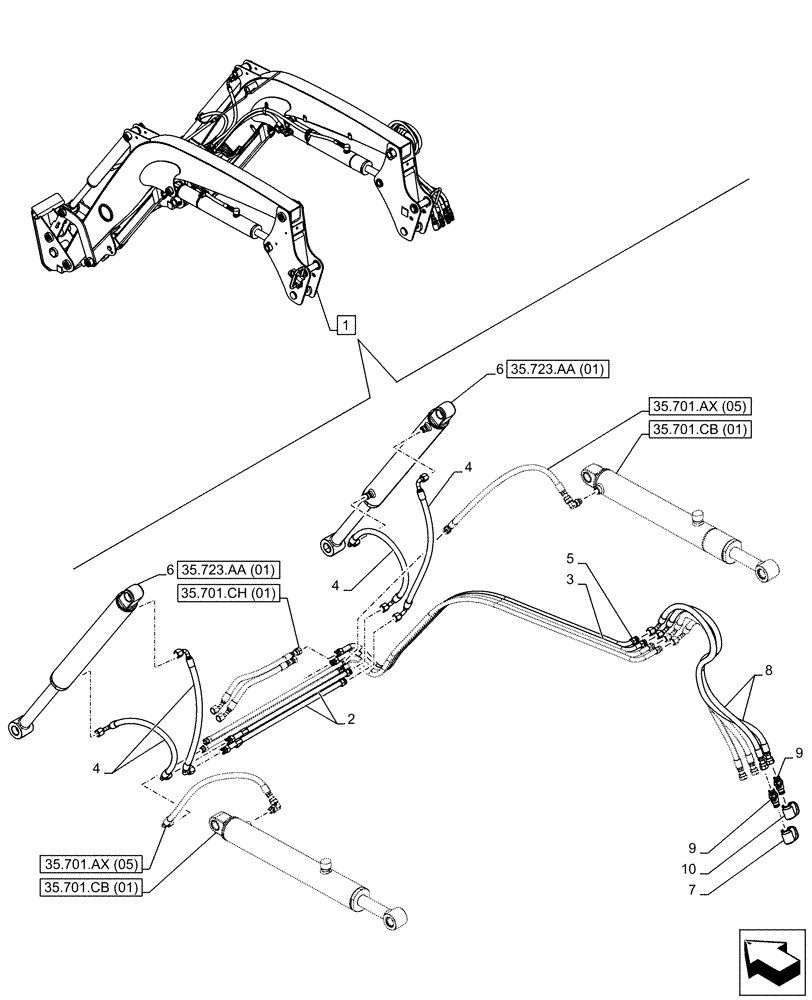

Схема запчастей Case IH FARMALL 65C - (35.723.AB[02]) - VAR - 336732, 336914 - BUCKET CYLINDER, LINES (W/ DIVERTER) (35) - HYDRAULIC SYSTEMS
35.723.aa (01)
4
35.701.cb (01)
6
7
4
1
5
35.701.ax (05)
35.701.ax (05)
10
9
35.701.cb (01)
6
2
4
3
8
9
35.701.ch (01)
35.723.aa (01)

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

47612279

HYD TUBE

Front Bucket Cylinder

2шт.

3

47608235

HYD TUBE

Front Bucket Diverter

1шт.

4

84406397

FLEXIBLE HOSE

Front Bucket Cylinder

4шт.

5

47608236

HYD TUBE

Front Bucket Diverter

1шт.

6

84406337

BUCKET CYLINDER

ASSY

2шт.

7

84406401

PLASTIC PLUG

Red

1шт.

8

84406192

FLEXIBLE HOSE,1250mm L

Front Loader

2шт.

9

84406394

FITTING

2шт.

10

84406402

PLASTIC PLUG

Blue

1шт.

Выбрано товаров: 13
