Запчасти Case IH FARMALL 65C (35.701.CH[01]) - VAR - 336732, 336914 - LOADER BUCKET, VALVE, PIPE (35) - HYDRAULIC SYSTEMS

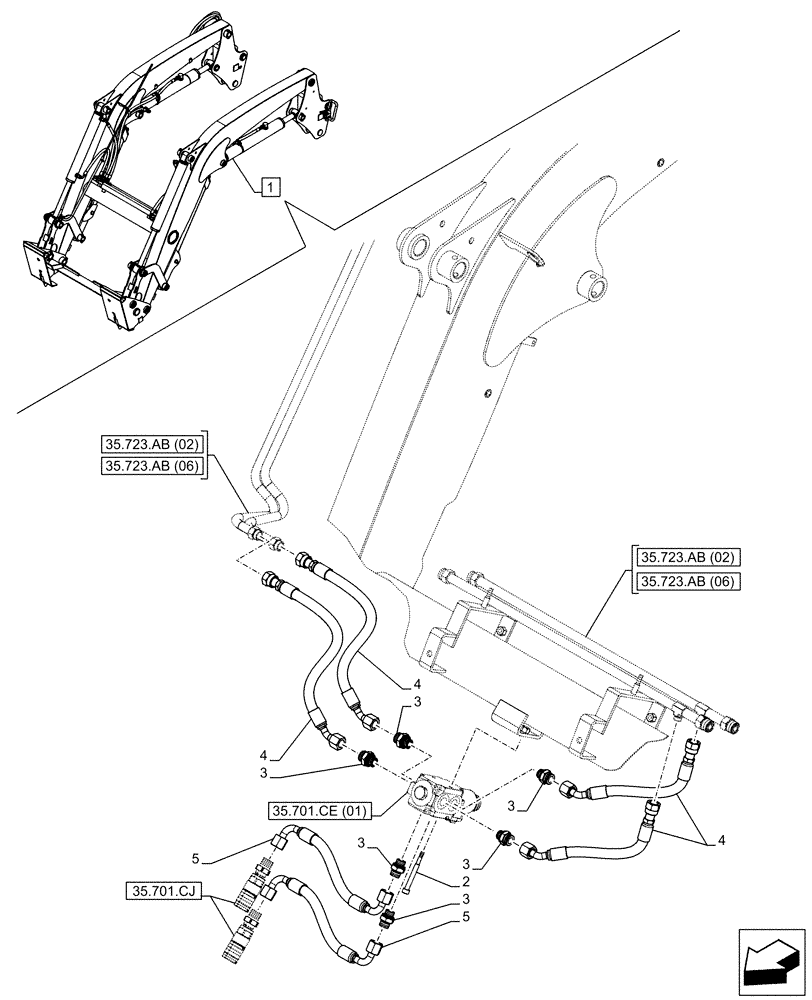

Схема запчастей Case IH FARMALL 65C - (35.701.CH[01]) - VAR - 336732, 336914 - LOADER BUCKET, VALVE, PIPE (35) - HYDRAULIC SYSTEMS
35.723.ab (02)
3
4
2
35.723.ab (06)
5
3
1
3
3
35.723.ab (06)
4
3
3
5
4
35.701.ce (01)
35.701.cj
35.723.ab (02)

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

14306021

HEX SOC SCREW,M6 x 50mm, Cl 8.8

2шт.

3

47612292

FITTING

6шт.

4

47614401

HOSE

Front Loader Diverter

4шт.

5

47612280

HOSE

to Quick Attach Coupler

2шт.

Выбрано товаров: 8
