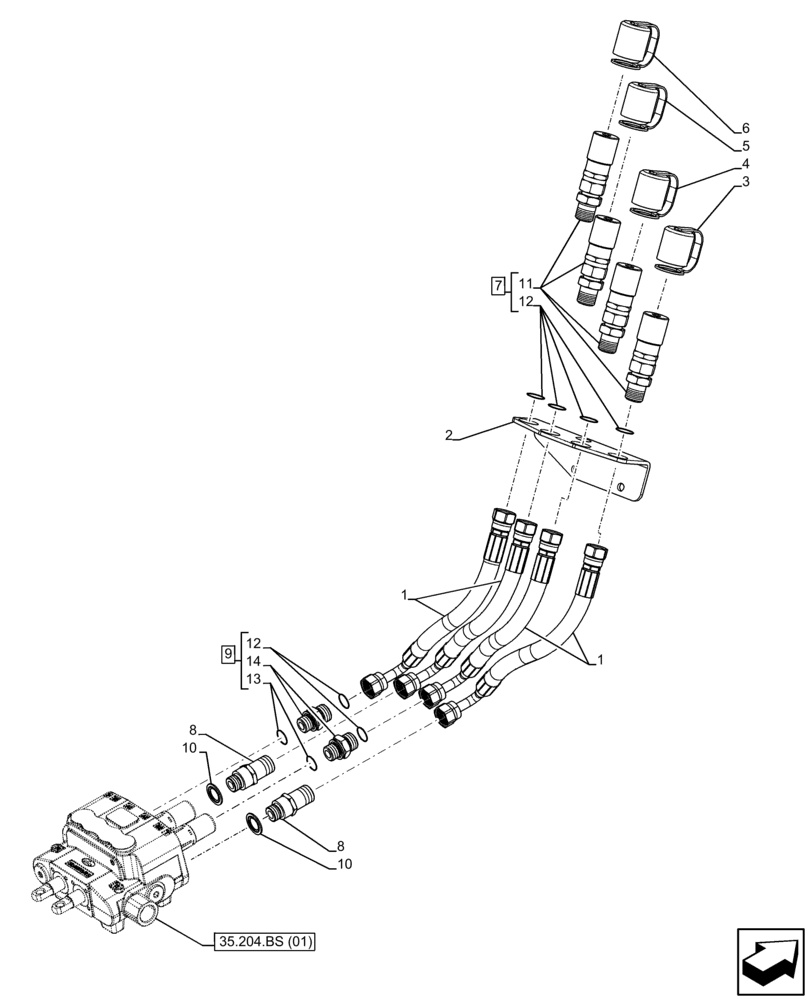

Запчасти Case IH FARMALL 65C (35.701.AD) - VAR - 333489, 334489, 335489, 339489, 336732, 336734, 336736 - FRONT LOADER, QUICK COUPLER (35) - HYDRAULIC SYSTEMS

1

84372826

FLEXIBLE HOSE

From MMV to Front Loader

4шт.

2

87336093

BRACKET

1шт.

3

87305167

PLUG

Blue

1шт.

4

87305168

PLUG

Red

1шт.

5

87305166

PLUG

Green

1шт.

6

87305169

PLUG

Yellow

1шт.

7

87305110

COUPLING, QUICK, FEM

ASSY, Incl 11, 12 (Qty 1)

4шт.

8

87304603

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

9

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

M18 x 1.5 ORB 13/16, ASSY, Incl 12 (Qty 1) - 14

2шт.

10

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

11

NSS

NOT SOLD SEPARAT

Quick Coupling, Incl in 7

4шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

6шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

2шт.
