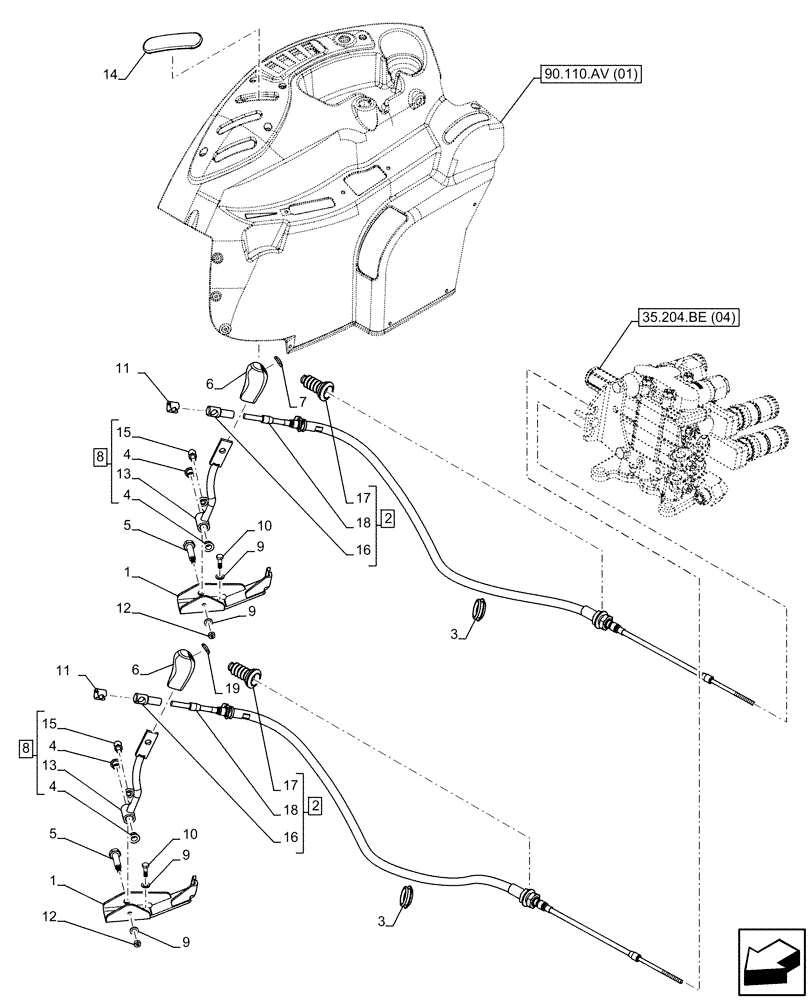

Запчасти Case IH FARMALL 65C (35.204.BL[04]) - VAR - 334107, 743569 - REMOTE CONTROL VALVE, CONTROL LEVER (2 REMOTE), W/O CAB (35) - HYDRAULIC SYSTEMS

1

84295559

SUPPORT

2шт.

2

84296420

FLEXIBLE CONTROL

LH, ASSY, Incl 16 (Qty 1), 17 (Qty 1), 18 (Qty 1)

2шт.

3

81862738

PLUG,M38 x 28 x 5mm

1шт.

4

84295562

BUSHING,10mm ID x 12mm OD x 10mm L

10mm ID x 12mm OD x 10mm Thk

4шт.

5

84302881

PIN,16.2mm OD x 49.5mm L

2шт.

6

47381094

KNOB,Black

2шт.

7

87698505

DATA PLAQUE

For Green Remote

1шт.

8

84395524

LEVER

ASSY, Incl 4 (Qty 2), 13 (Qty 1), 15 (Qty 1)

2шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

11

10125574

CLAMP,13mm

13 X 15 STL DAC

2шт.

12

12575411

LOCK NUT,M6 x 1, Cl 8

2шт.

13

84324148

LEVER

2шт.

14

47488551

PLUG,Lapreme black color

1шт.

15

10051711

BALL STUD

2шт.

16

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

M13 x 45 Type Socket Lite STL Z

2шт.

17

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

18

NSS

NOT SOLD SEPARAT

Cable, Incl in 2

2шт.

19

87698506

DATA PLAQUE

For Blue Remote

1шт.
