Запчасти Case IH FARMALL 65C (35.204.BE[11]) - VAR - 390107, 334107, 743568, 743569 - REMOTE CONTROL VALVE, DISTRIBUTOR, COMPONENTS (35) - HYDRAULIC SYSTEMS

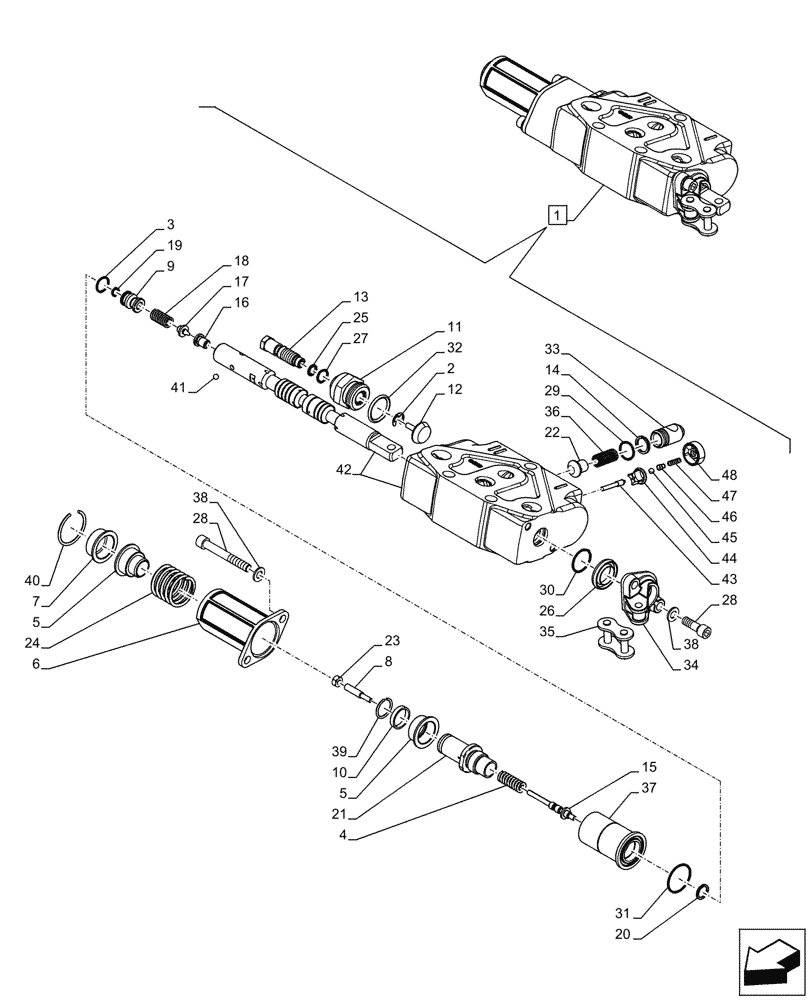

Схема запчастей Case IH FARMALL 65C - (35.204.BE[11]) - VAR - 390107, 334107, 743568, 743569 - REMOTE CONTROL VALVE, DISTRIBUTOR, COMPONENTS (35) - HYDRAULIC SYSTEMS
46
3
18
8
21
40
24
31
28
41
16
15
7
9
2
36
45
43
48
38
4
35
32
47
37
33
42
1
12
29
5
28
14
5
20
11
10
27
30
23
26
34
39
19
6
22
13
17
25
38
44

Артикул

Название

Примечание

Количество

1

84406708

DISTRIBUTOR

ASSY, Incl 2 - 48

1шт.

2

11087876

CIRCLIP,M7

1шт.

3

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

4

5143561

SPRING,Compression, 9mm OD x 27mm L

1шт.

5

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

2шт.

6

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

7

5143567

COVER

1шт.

8

5155484

ADJUSTMENT SCREW,M5 x 0.8 x 14mm

1шт.

9

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

10

5143565

SPACER,16mm ID x 18.5mm OD x 3.5mm L

1шт.

11

5136346

BODY,7/8" - 14

1шт.

12

5136347

PIN,3.8mm OD x 15mm L

1шт.

13

5136348

PIN,10mm OD x 37mm L

1шт.

14

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

15

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

16

5143554

PLUG,Slot, M7 x 0.75

1шт.

17

5143555

PIN,5.5mm OD x 12mm L

1шт.

18

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

19

5143558

O-RING,1.78mm Thk x 2.54mm ID

1шт.

20

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

21

5143562

PLUG,Remote spool, M14 x 1

1шт.

22

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

23

15896421

NUT,M5, Cl 10

1шт.

24

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

25

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

26

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

27

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

28

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

29

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

30

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

31

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

32

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

33

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

34

84283452

SUPPORT

1шт.

35

87658153

LINK,19.05mm Pitch

1шт.

36

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

37

5179137

BUSHING,16mm ID x 27mm OD x 23.5mm L

1шт.

38

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

39

13397776

SNAP RING,M16, Int

1шт.

40

13421276

SNAP RING,M28, Int

1шт.

41

20063420

BALL,3.96mm OD, Gr 100

4шт.

42

47641361

DISTRIBUTOR

1шт.

43

84583579

PUSH ROD,26.8mm L

1шт.

43

47627683

PUSH ROD,27.0mm L

1шт.

43

84583583

PUSH ROD,26.4mm L

1шт.

43

84583582

PUSH ROD,26.6mm L

1шт.

43

47627682

PUSH ROD,26.2mm L

1шт.

44

47441337

VALVE POPPET,13mm OD x 9.5mm L

1шт.

45

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

46

84587372

PIN,3mm OD x 4mm L

1шт.

47

87750880

VALVE SPRING,Compression, 3.8mm OD x 11.5mm L

1шт.

48

47439670

RETAINER CUP,M18 x 1.5 x 6.5mm Thk

No-Leak Valve

1шт.

Выбрано товаров: 52
