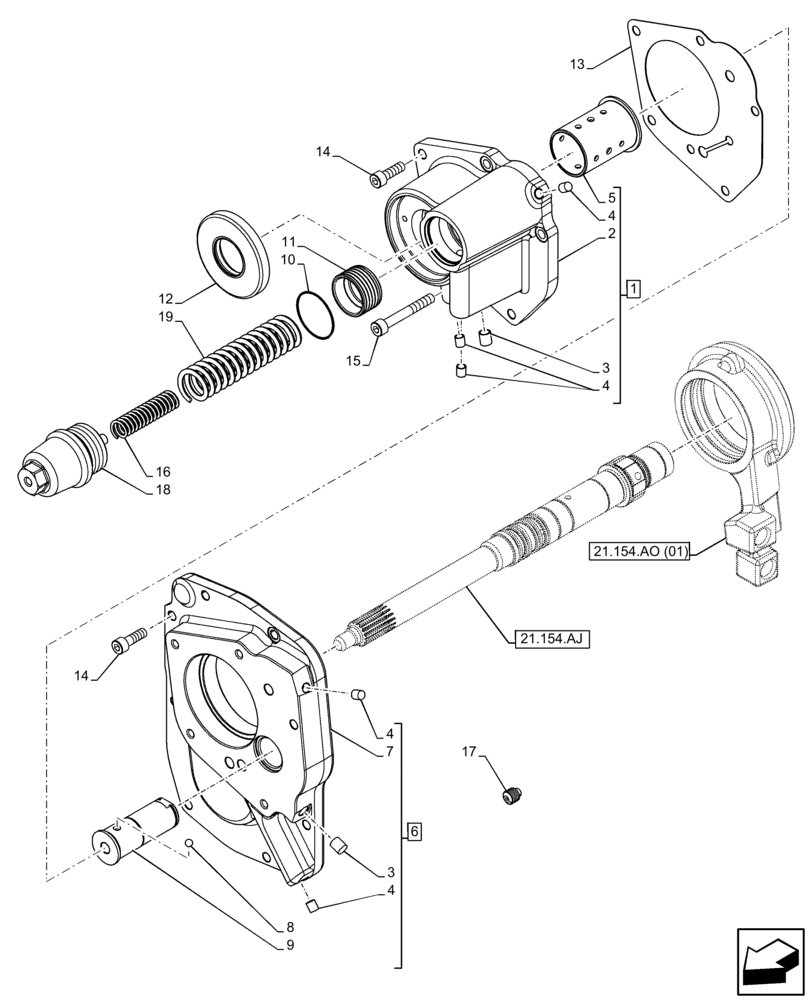

Запчасти Case IH FARMALL 65C (21.154.AM) - VAR - 330274, 330276, 334175, 334176 - TRANSMISSION, CLUTCH, COVER (21) - TRANSMISSION

1

84274364

COVER

ASSY, Incl 2, 3 (Qty 1), 4 (Qty 3), 5

1шт.

2

NSS

NOT SOLD SEPARAT

Cover Manifold, Incl in 1

1шт.

3

14536590

PLUG,10.00mm Dia x 19.80mm L

2шт.

4

14536490

PLUG,8.00mm Dia x 15.70mm L

5шт.

5

84245683

BUSHING,40.01mm ID x 52mm OD x 64mm L

40mm ID x 45mm x 20mm Thk

1шт.

6

84274363

COVER

ASSY, Incl 3 (Qty 1), 4 (Qty 2), 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Plate Cover, Incl in 6

1шт.

8

20419320

BALL,6.35mm OD

1шт.

9

84245680

PIN

1шт.

10

14458881

O-RING,1.612" ID x 0.103" Width

4шт.

11

84424761

PISTON

1шт.

12

5150370

SEAL,35mm ID x 80mm OD x 10mm Thk

35 x 80 x 10

1шт.

13

84248411

GASKET

1шт.

14

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

11шт.

15

14308920

HEX SOC SCREW,M8 x 60mm, Cl 8.8

1шт.

16

84424758

SPRING,Compression, 20mm OD x 84.5mm L

1шт.

17

84422311

RESTRICTOR

1шт.

18

84424759

CAP

1шт.

19

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.
