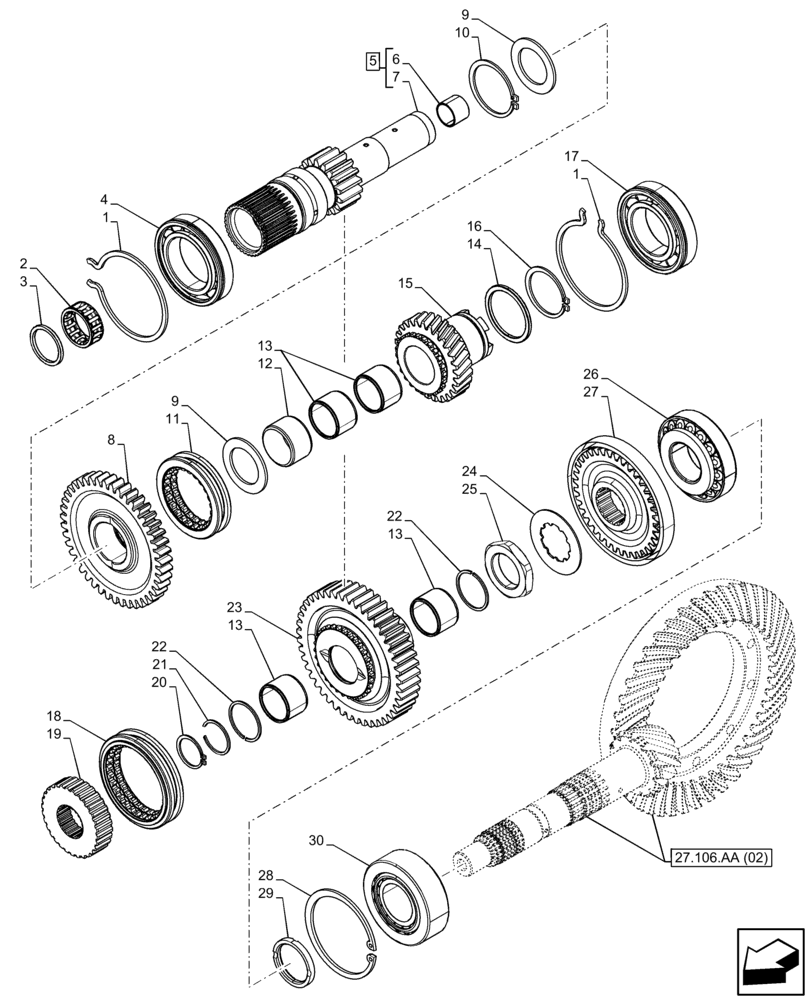

Запчасти Case IH FARMALL 65C (21.148.AQ[03]) - VAR - 330069, 332069, 333069 - CENTRAL REDUCTION GEAR, SHAFT & GEAR (21) - TRANSMISSION

1

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

2шт.

2

87370423

NEEDLE BEARING,35mm ID x 42mm OD x 16mm W

1шт.

3

84148356

TUBE SPACER,35mm ID x 42mm OD x 3.2mm L

1шт.

4

5178809

BALL BEARING,55mm ID x 90mm OD x 18mm W

1шт.

5

84283016

SHAFT

Drive Range 12 x 12, ASSY, Incl 6, 7

1шт.

6

5124504

BUSHING

22.08mm ID x 25mm OD x 20mm Thk

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 5

1шт.

8

84234626

GEAR

1шт.

9

84517587

SEAL,38.2mm ID x 56mm OD x 2mm Thk

2шт.

10

800-1156

SNAP RING,M56, Ext

1шт.

11

84242179

SLEEVE

1шт.

12

84234630

NEEDLE BEARING,38mm ID x 43mm OD x 27mm W

1шт.

13

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

4шт.

14

84248584

SPACER

1шт.

15

84234629

GEAR

1шт.

16

11069376

SNAP RING,M50, Ext

1шт.

17

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

18

87370421

SLEEVE,Z30

1шт.

19

84234606

GEAR,22T Internal / 30T External

1шт.

20

11068076

SNAP RING,M32, Ext

1шт.

21

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

1шт.

22

5168197

SNAP RING,1.5mm Thk, Int

2шт.

23

84234607

GEAR

Driven, Slow and Medium Range

1шт.

24

5168182

LOCK WASHER,36mm ID x 68mm OD x 1.5mm Tnk

1шт.

25

5171819

NUT,M38x1

1шт.

26

84234287

TAPERED BEARING,40mm ID x 90mm OD x 30mm W

1шт.

27

84234605

GEAR

Driven Slow Range

1шт.

28

11062476

SNAP RING,M90, Int

1шт.

29

84248585

SHIM

7.45mm Thk

1шт.

29

84248586

SHIM

7.50mm Thk

1шт.

29

84248587

SHIM,40.2mm ID x 50mm OD x 7.55mm Thk

7.55mm Thk

1шт.

29

84248588

SHIM

7.60mm Thk

1шт.

29

84248589

SHIM

7.65mm Thk

1шт.

29

84248590

SHIM

7.70mm Thk

1шт.

29

84248591

SHIM

7.75mm Thk

1шт.

29

84248592

SHIM

7.80mm Thk

1шт.

29

84248593

SHIM

7.85mm Thk

1шт.

30

84234290

TAPERED BEARING,40mm ID x 90mm OD x 35.25mm W

1шт.
