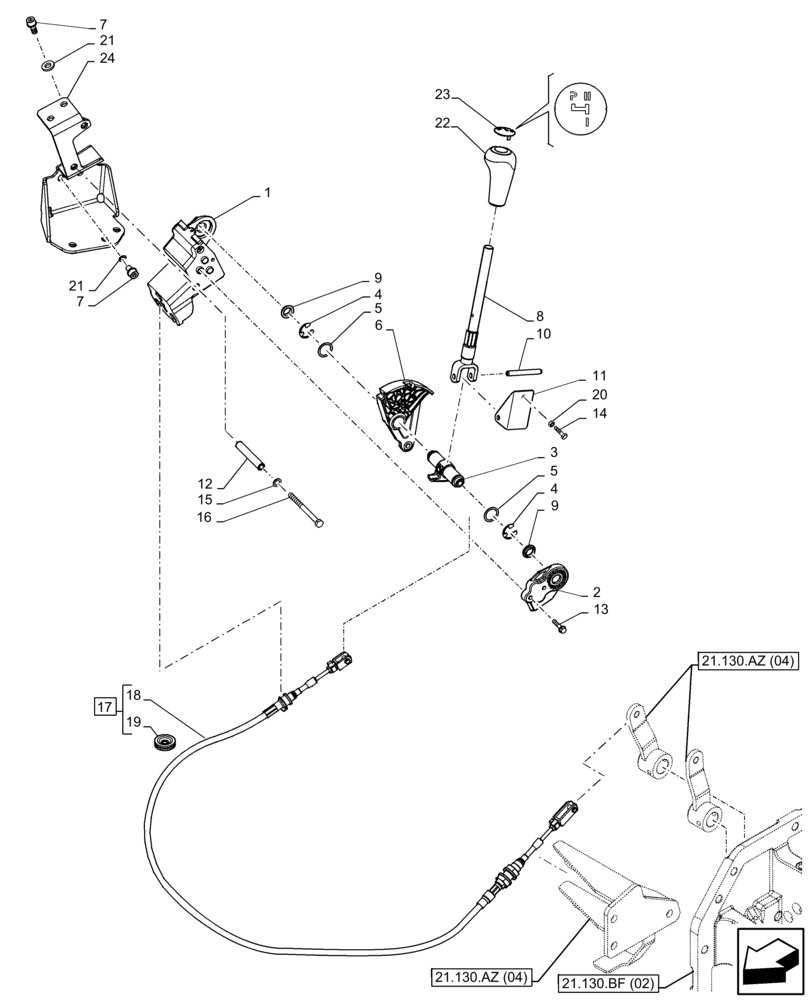

Запчасти Case IH FARMALL 65C (21.134.AI[08]) - VAR - 330274, 334174, 334175, 390067 - TRANSMISSION, CONTROL LEVER, GEARSHIFT, W/O CAB (21) - TRANSMISSION

1

84338365

SUPPORT

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

1шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

1шт.

6

84478534

FERRULE

RH

1шт.

7

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

4шт.

8

84295383

LEVER

1шт.

9

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

16mm ID x 18mm OD x 6mm Thk

2шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84466335

BRACKET

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

ST 6.3 x 32 Type AB

2шт.

14

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.

15

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

16

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

4шт.

17

84295361

FLEXIBLE CABLE

RH, ASSY, Incl 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 17

1шт.

19

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

1шт.

20

10720114

NUT,Hex, M6 x 1

M6 Cl 8 DAC

1шт.

21

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

22

84210474

KNOB

1шт.

23

84483460

INSERT

8 x 8 + P

1шт.

24

84488301

BRACKET

4шт.
