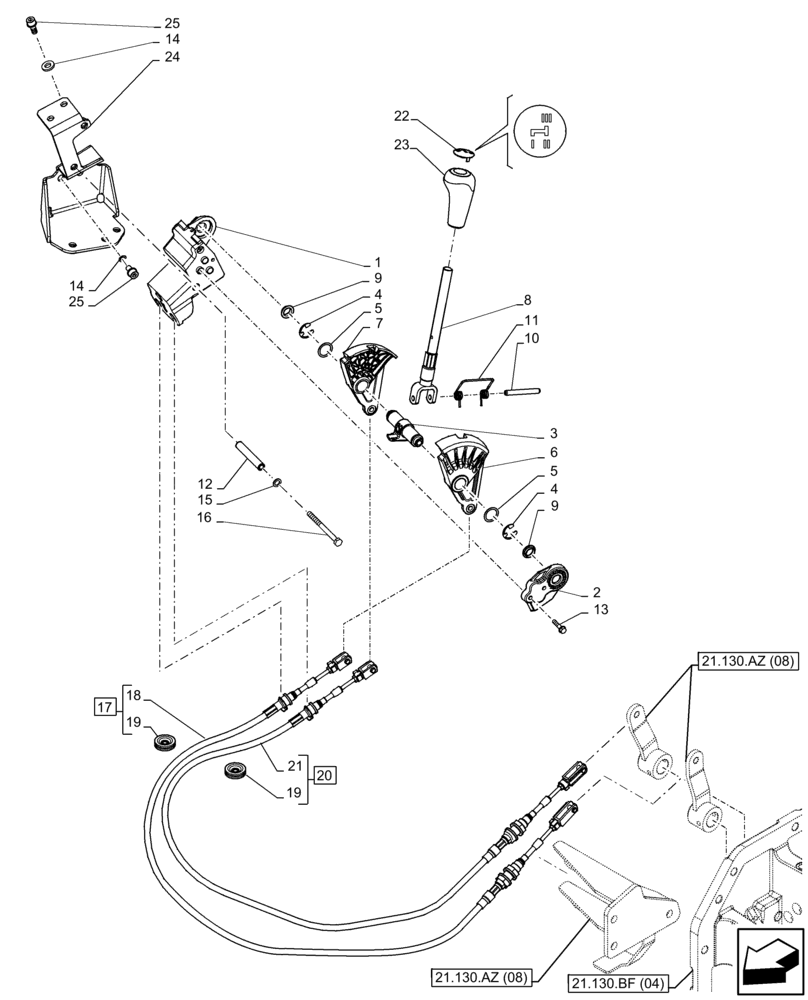

Запчасти Case IH FARMALL 65C (21.134.AI[06]) - VAR - 330274, 330276, 332079, 334176, 743546, 744576 - TRANSMISSION CONTROL LEVER, GEARSHIFT, W/O CAB (21) - TRANSMISSION

1

84338365

SUPPORT

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84338371

SUPPORT

1шт.

7

84478534

FERRULE

1шт.

8

84295383

LEVER

1шт.

9

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

16mm ID x 18mm OD x 6mm Thk

2шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

ST 6.3 x 32 Type AB

2шт.

14

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

15

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

16

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

M8 x 1.25 x 100 - HH 8.8

2шт.

17

84295361

FLEXIBLE CABLE

RH, ASSY, Incl 18, 19 (Qty 1)

1шт.

18

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 17

1шт.

19

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

20

84295362

FLEXIBLE CABLE

LH, ASSY, Incl 19 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 20

1шт.

22

84381836

INSERT

Gear Selector 12 x 12

1шт.

23

84210474

KNOB

1шт.

24

84488301

BRACKET

1шт.

25

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

4шт.
