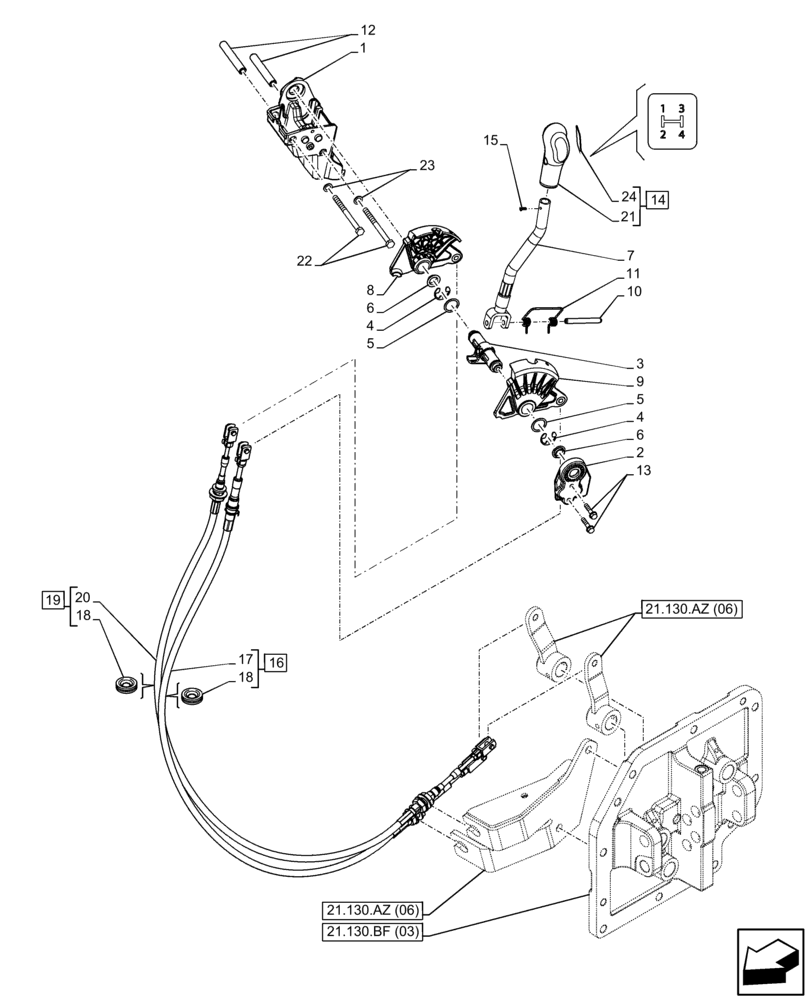

Запчасти Case IH FARMALL 65C (21.134.AI[01]) - VAR - 330274, 334174, 334175, 390067 - TRANSMISSION CONTROL LEVER, GEARSHIFT, CAB (21) - TRANSMISSION

1

84338365

SUPPORT

1шт.

2

84478538

SUPPORT

1шт.

3

84338367

SHAFT

1шт.

4

16165174

CIRCLIP,M16

2шт.

5

84583037

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

6

84295357

BUSHING,16mm ID x 24mm OD x 6mm L

16mm ID x 18mm OD x 6mm Thk

2шт.

7

84278260

LEVER

1шт.

8

84338368

SUPPORT

1шт.

9

84338369

SUPPORT

1шт.

10

14607870

LOCK PIN,M8 x 70, Slotted

1шт.

11

84325171

SPRING

1шт.

12

84338346

SPACER,8mm ID x 13mm OD x 81mm L

2шт.

13

15926104

SELF-TAP SCREW,ST 6.3 x 32 Type AB, HTS DAC

ST 6.3 x 32 Type AB

2шт.

14

84399104

KNOB

ASSY, Incl 21, 24

1шт.

15

13310977

SCREW,Pozidriv Oval Hd, Csk, M5 x 14mm, Full Thd, SST

M5 x 14

1шт.

16

84295359

BOWDEN CONTROL

RH, ASSY, Incl 17, 18 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 16

1шт.

18

84325372

GROMMET,9mm ID x 30mm OD x 9mm L

2шт.

19

84295360

FLEXIBLE CABLE

LH, ASSY, Incl 18 (Qty 1), 20

1шт.

20

NSS

NOT SOLD SEPARAT

Bowden Control, Incl in 19

1шт.

21

NSS

NOT SOLD SEPARAT

Knob, Incl in 14

1шт.

22

86980390

BOLT,Hex, M8 x 100mm, Cl 8.8

M8 x 1.25 x 100 - HH 8.8

2шт.

23

10284460

WASHER,M10.2 x 16 x 1.5, Copper

2шт.

24

84381847

COVER

Gear Selector 12X12

1шт.
