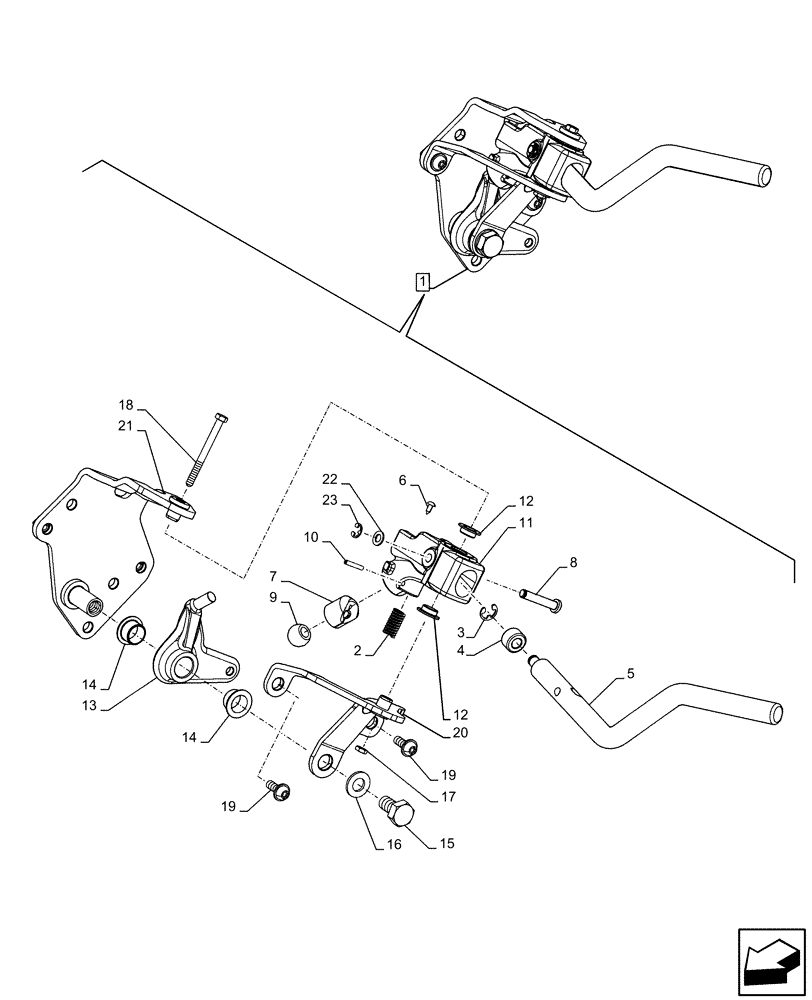

Запчасти Case IH FARMALL 65C (21.130.BC[02]) - VAR - 330272, 332079, 334174, 390067, 743546, 744576 - TRANSMISSION CONTROL LEVER, COMPONENTS (21) - TRANSMISSION

1

47557162

TRIP ARM

ASSY, Incl 2 - 23

1шт.

2

84318178

SPRING,10mm OD x 20mm L

1шт.

3

11087974

CIRCLIP,Ext., M8, DAC

1шт.

4

84399090

BUSHING,8mm ID x 16mm OD x 10mm L

8mm ID x 16mm OD x 10mm Thk

1шт.

5

47455239

LEVER

1шт.

6

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

M3 x 8

1шт.

7

84317604

BUSHING,19mm OD x 21.5mm L

19mm OD x 21.6mm Tkh

1шт.

8

84411345

PIN,5mm x 36.25mm

1шт.

9

84317609

BALL,8mm ID x 17mm OD

1шт.

10

130075

LOCK PIN,M3 x 18, Slotted

1шт.

11

84295548

TRIP ARM

1шт.

12

84345269

BUSHING,10mm ID x 12mm OD x 5mm L

10mm ID x 12mm OD x 5mm Thk

2шт.

13

84281440

CONTROL LEVER

1шт.

14

84345358

BUSHING,14mm ID x 16mm OD x 10mm L

14mm ID x 16mm OD x 10mm Thk

2шт.

15

14233221

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

11198579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.9mm Thk

1шт.

17

12577811

NUT,M5

M5

1шт.

18

15201121

BOLT,Hex, M5 x 60mm, Cl 8.8

1шт.

19

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

20

84346648

BRACKET

1шт.

21

84295488

BRACKET

1шт.

22

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

1шт.

23

NSS

NOT SOLD SEPARAT

Circlip, Incl in 1

1шт.
