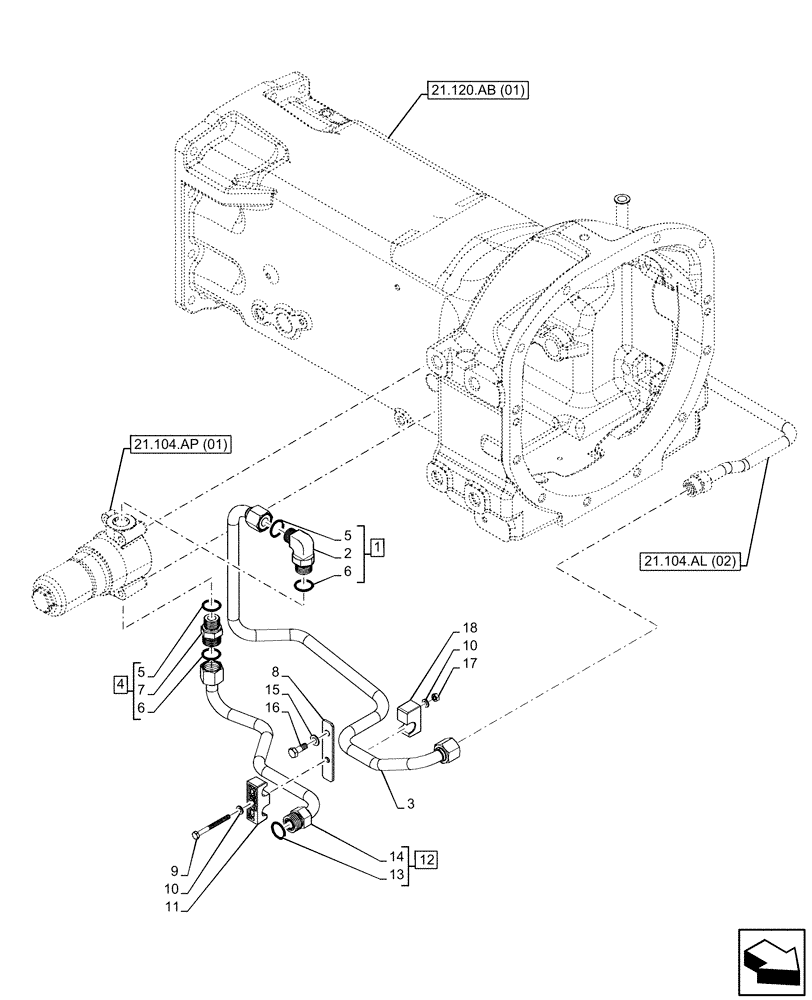

Запчасти Case IH FARMALL 65C (21.104.AL[03]) - VAR - 332069, 334068 - TRANSMISSION LUBRICATION LINE, RIGHT SIDE (21) - TRANSMISSION

1

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 2, 5 (Qty 1), 6 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

3

47528405

PIPE

Filter Out

1шт.

4

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 7

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

8

84427545

BRACKET

1шт.

9

10903921

BOLT,Hex, M6 x 65mm, Cl 8.8

1шт.

10

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

2шт.

11

87571442

BRACKET

1шт.

12

84426999

RIGID TUBE

Filter In, ASSY, Incl 13, 14

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Pipe, Incl in 12

1шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

16

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

1шт.

17

10720124

NUT,Hex, M6 x 1

M6 10 Dac

1шт.

18

84309587

BRACKET

1шт.
