Запчасти Case IH FARMALL 65C (21.104.AC[02]) - VAR - 333068, 333069, 390068 - CONTROL VALVE, OIL LINES, W/O CAB (SHUTTLE) (21) - TRANSMISSION

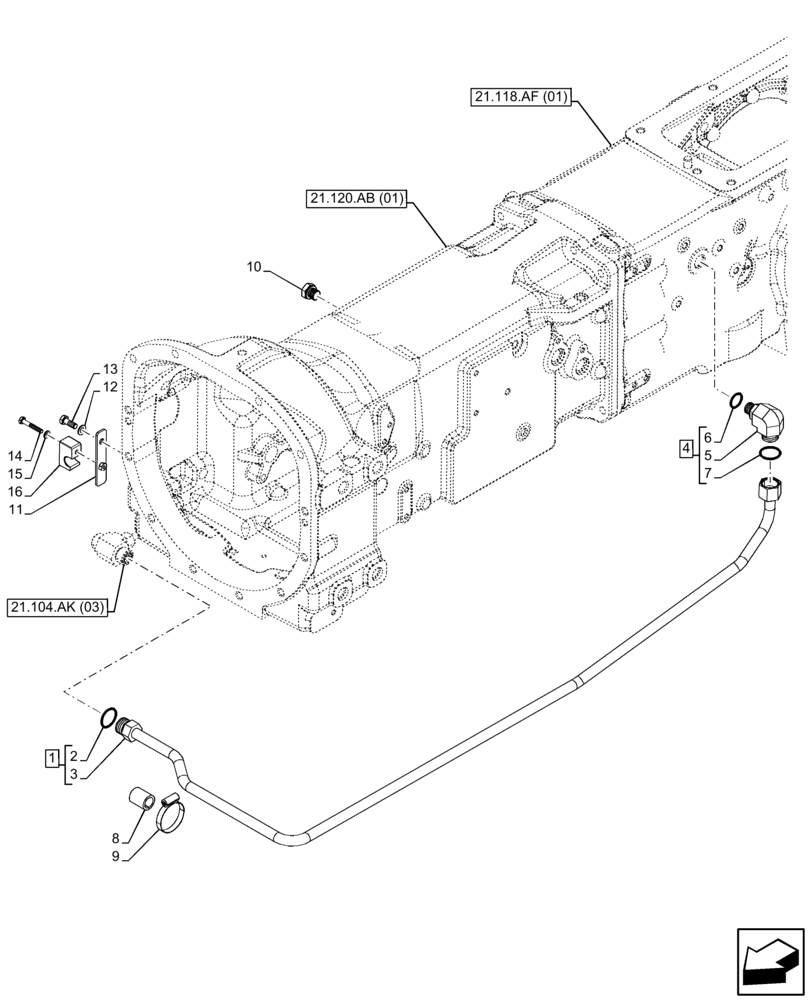

Схема запчастей Case IH FARMALL 65C - (21.104.AC[02]) - VAR - 333068, 333069, 390068 - CONTROL VALVE, OIL LINES, W/O CAB (SHUTTLE) (21) - TRANSMISSION
13
9
8
3
2
1
14
16
10
5
7
21.120.ab (01)
4
21.104.ak (03)
12
15
21.118.af (01)
11
6

Артикул

Название

Примечание

Количество

1

47528545

PIPE

ASSY, Lubrication, Delivery, Incl 2, 3

1шт.

2

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

4

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

4959735

SPACER,18mm ID x 25mm OD x 30mm L

18mm ID x 25mm OD x 30mm Thk

1шт.

9

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

40 x 60mm STL ZND

1шт.

10

86981620

PLUG,M16 x 1.5, ORB

1шт.

11

84409985

BRACKET

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

13

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

1шт.

14

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

15

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

16

84309587

BRACKET

1шт.

Выбрано товаров: 16
