(21.104.AC[01]) - VAR - 332068, 332069, 334068 - CONTROL VALVE, OIL LINE (POWER SHUTTLE)

Запчасти Case IH FARMALL 65C (21.104.AC[01]) - VAR - 332068, 332069, 334068 - CONTROL VALVE, OIL LINE (POWER SHUTTLE) (21) - TRANSMISSION

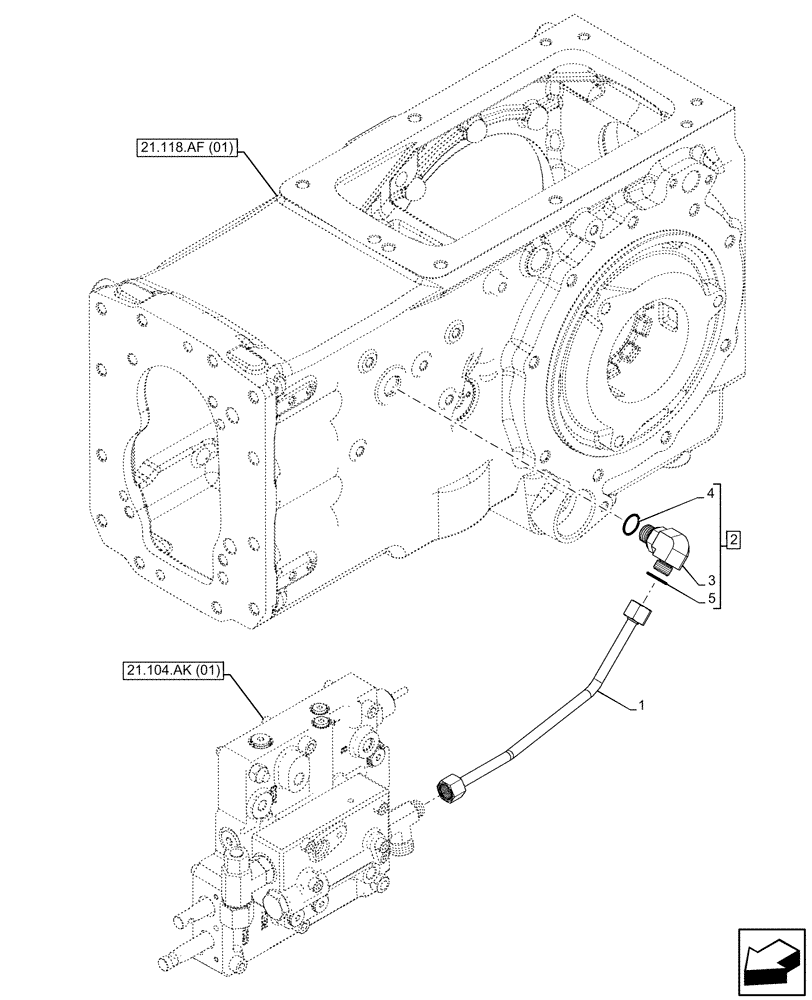

Схема запчастей Case IH FARMALL 65C - (21.104.AC[01]) - VAR - 332068, 332069, 334068 - CONTROL VALVE, OIL LINE (POWER SHUTTLE) (21) - TRANSMISSION
3
21.104.ak (01)
21.118.af (01)
4
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84240499

RIGID TUBE

Lubrication, Delivery

1шт.

2

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
