(21.100.AQ[01]) - VAR - 333068, 333069, 390068 - TRANSMISSION LUBRICATION LINE, CAB (SHUTTLE)

Запчасти Case IH FARMALL 65C (21.100.AQ[01]) - VAR - 333068, 333069, 390068 - TRANSMISSION LUBRICATION LINE, CAB (SHUTTLE) (21) - TRANSMISSION

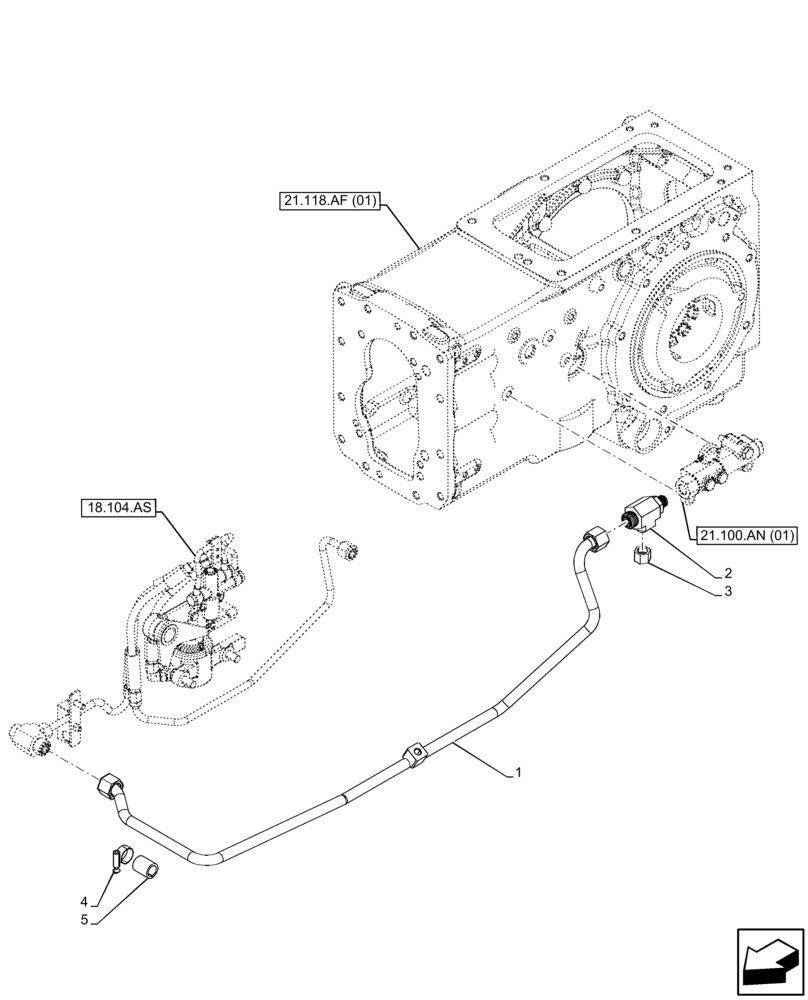

Схема запчастей Case IH FARMALL 65C - (21.100.AQ[01]) - VAR - 333068, 333069, 390068 - TRANSMISSION LUBRICATION LINE, CAB (SHUTTLE) (21) - TRANSMISSION
3
5
1
21.100.an (01)
18.104.as
4
2
21.118.af (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47528242

PIPE

Lubrication

1шт.

2

84308737

FITTING

1 - 14,11 / 16 - 16, M18 x 1.5

1шт.

3

9625546

CAP,11/16" - 16 ORFS

1шт.

4

82039345

HOSE CLAMP,25mm - 40mm, Worm Gear

25 x 40mm

1шт.

5

4959735

SPACER,18mm ID x 25mm OD x 30mm L

18mm ID x 25mm OD x 30mm Thk

1шт.

Выбрано товаров: 5
