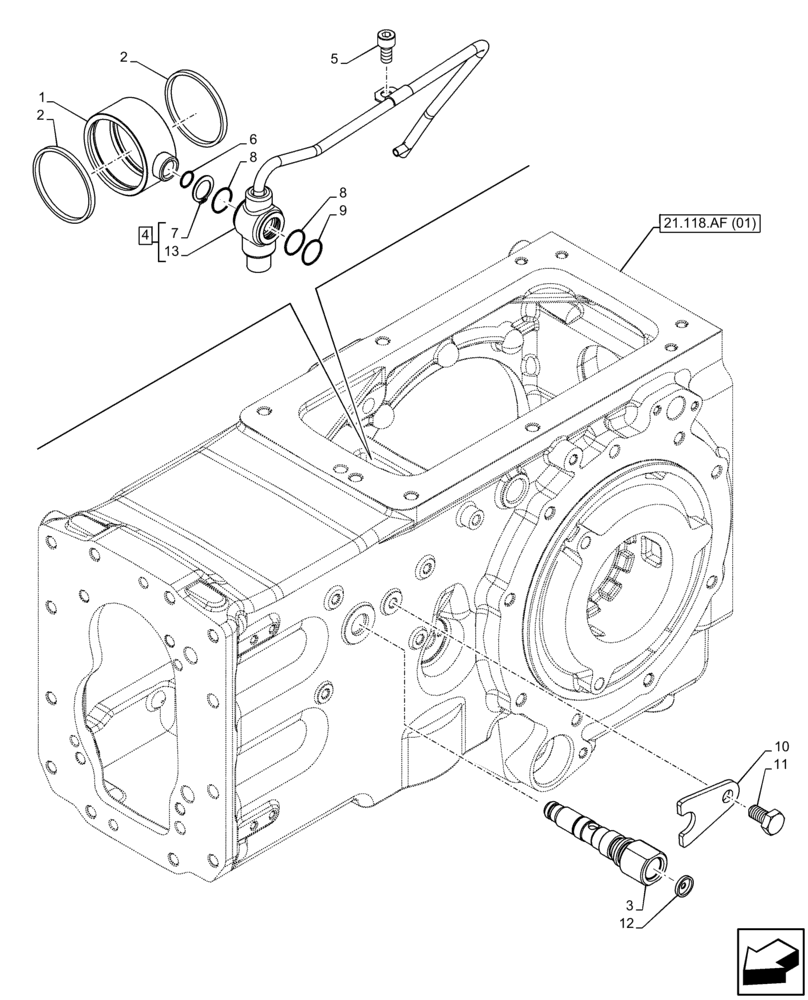

Запчасти Case IH FARMALL 65C (21.100.AM[02]) - VAR - 330581, 335694, 390328, 743559, 744580 - TRANSMISSION LUBRICATION LINE, MANIFOLD (POWER SHUTTLE) (21) - TRANSMISSION

1

84252063

MANIFOLD

Oil

1шт.

2

84245728

GASKET

62 x 57 x 4

2шт.

3

84245688

BANJO BOLT

1шт.

4

84245749

PIPE

ASSY, Incl 7, 13

1шт.

5

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

6

14453080

O-RING,0.426" ID x 0.07"

1шт.

7

84360848

SPACER,16.2mm ID x 20mm OD x 19mm L

16.2mm ID x 20mm OD x 19mm Thk

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

9

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

10

84245693

LOCKING PLATE

1шт.

11

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

12

84523221

PLUG

16mm

1шт.

13

NSS

NOT SOLD SEPARAT

Pipe, Incl in 4

1шт.
