Запчасти Case IH FARMALL 65C (90.160.05) - SOUNDPROOFING - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

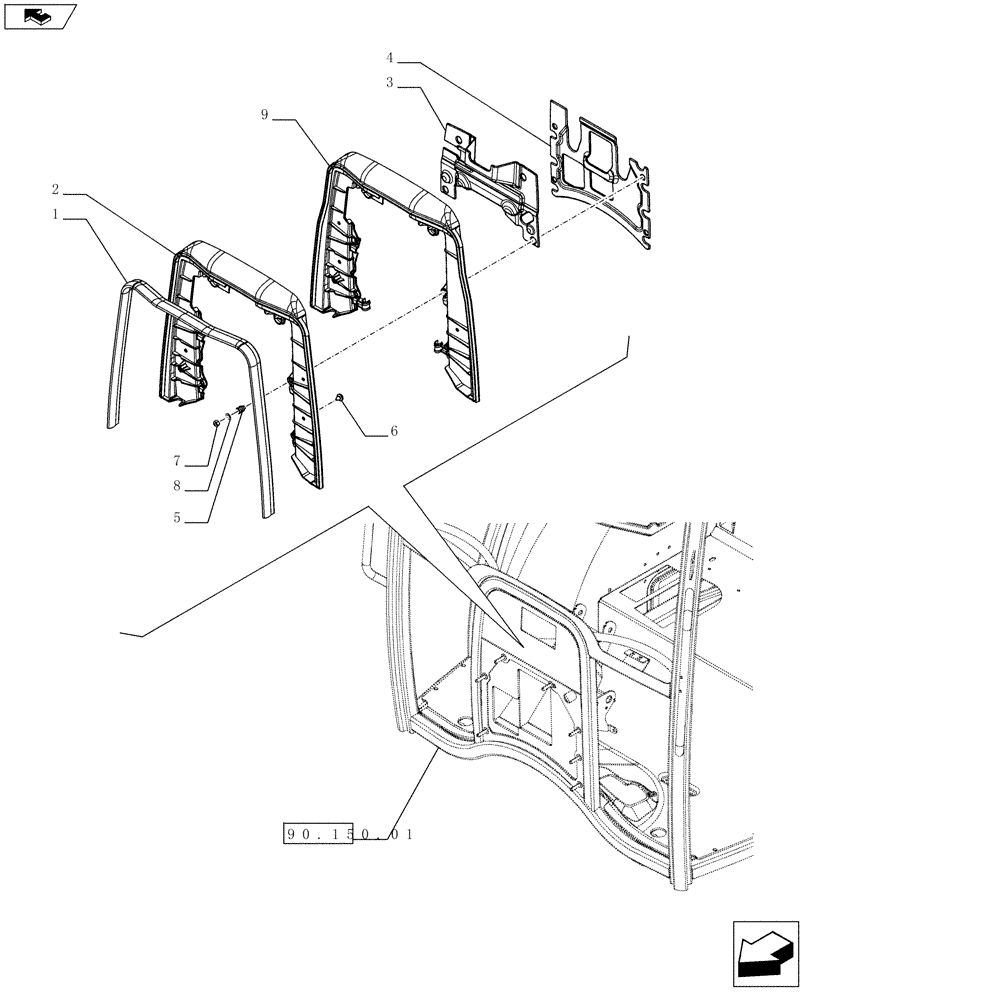

Схема запчастей Case IH FARMALL 65C - (90.160.05) - SOUNDPROOFING - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
2
90.150.01
6
9
3
home
4
5
8
7

Артикул

Название

Примечание

Количество

1

84355244

RUBBER SEAL

1шт.

2

84354399

GUARD

ASSY, Contains Ref. 5

1шт.

3

84310240

SHIELD

1шт.

4

47359432

SHIELD

1шт.

5

5176859

BUSHING,7mm ID x 11mm OD x 10mm L

6шт.

6

14624887

PLUG,5.5mm OD x 2.5mm

4шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

6шт.

8

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

9

84388822

GUARD

1шт.

With Open. Side Glasses and open. Windscreen, VAR.331606-339606

1шт.

Выбрано товаров: 10
