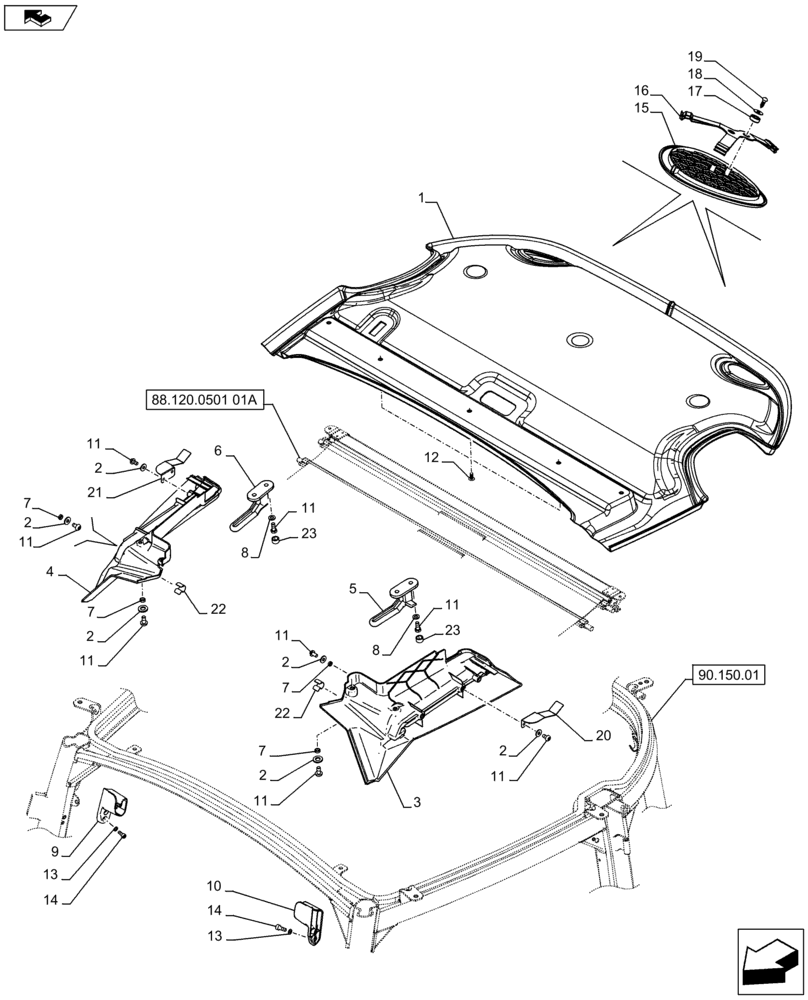

Запчасти Case IH FARMALL 65C (90.160.0301[01A]) - CAB WITH HIGH VISIBILITY PANEL - HEADLINER (VAR.333606 / 743574; VAR.336606-339606) - BEGIN YR 06-DEC-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47441759

SOFT TRIM

1шт.

2

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

12шт.

3

47437898

GUIDE

LH

1шт.

4

47437896

COVER

RH

1шт.

5

5089564

HANDLE

LH

1шт.

6

5095078

HANDLE

RH

1шт.

7

47451478

BUSHING,7.2mm ID x 9.2mm OD x 2.8mm L

8шт.

8

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

9

47437466

BRACKET

RH

1шт.

10

47437473

BRACKET

LH

1шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

12

82023460

STUD,M7.85 x 19.50mm, Plastic

3шт.

13

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

14

FOR2479277

SCREW,M6 x 16mm L

4шт.

15

47422523

GRILLE

2шт.

16

47422558

BRACKET

2шт.

17

47422464

SPACER,5.7mm ID x 10mm OD x 4mm L

4шт.

18

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

4шт.

19

15901470

SELF-TAP SCREW,Cross Pan Hd, M2.90 x 1.1 x 9.50mm

4шт.

20

47441747

BRACKET

LH

1шт.

21

47441746

BRACKET

RH

1шт.

22

47441750

SPRING

2шт.

23

5089481

CAP,17mm OD

4шт.
