Запчасти Case IH FARMALL 65C (90.160.02[02]) - CONTROLS COVER - LH - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

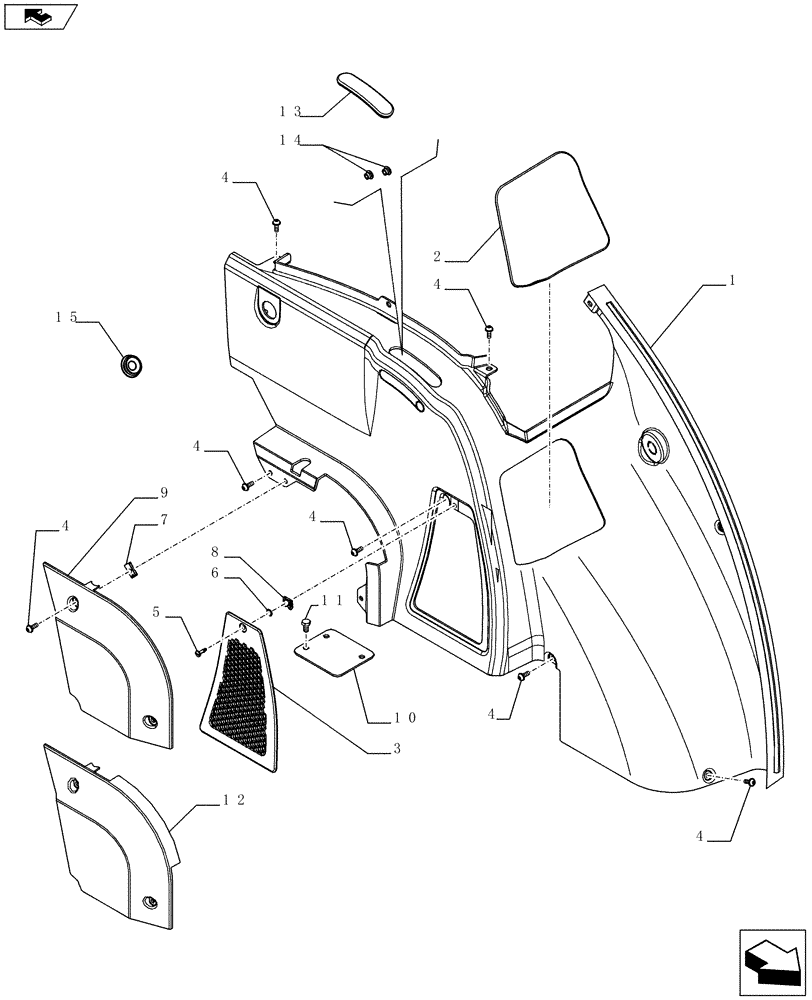

Схема запчастей Case IH FARMALL 65C - (90.160.02[02]) - CONTROLS COVER - LH - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
home
7
14
13
4
4
1
9
8
15
5
3
4
4
11
12
6
4
4
4
10

Артикул

Название

Примечание

Количество

1

84316097

TRIM PANEL

1шт.

2

84316098

PLUG,Cradle WA

1шт.

3

84316040

FILTER COVER

1шт.

4

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

10шт.

5

84354393

PIN,18.8mm L

1шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

1шт.

7

14371774

SPRING NUT,M6, U, 12mm long

2шт.

8

84291986

CLIP,18.8mm L x 15.9mm W

1шт.

9

84316029

TRIM PANEL

Int. Color. LCase Wheat, LH Brake Cover

1шт.

NAR Market, 75C Model Only, Less Handbrake Control

1шт.

10

84305735

PLUG

1шт.

NAR Market, 75C Model Only, Less Handbrake Control

1шт.

11

16043211

BOLT,Hex, M8 x 1.25 x 16mm, Cl 5.8, Full Thd

3шт.

NAR Market, 75C Model Only, Less Handbrake Control

1шт.

12

84316574

TRIM

Int. Color. LCase Wheat, LH Brake Cover

1шт.

13

84305703

PLUG

122 x 34mm

1шт.

14

82003283

PLUG,10.5mm OD

2шт.

15

81862738

PLUG,M38 x 28 x 5mm

1шт.

Выбрано товаров: 18
