Запчасти Case IH FARMALL 65C (90.160.02[01]) - CONTROLS COVER - LH - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

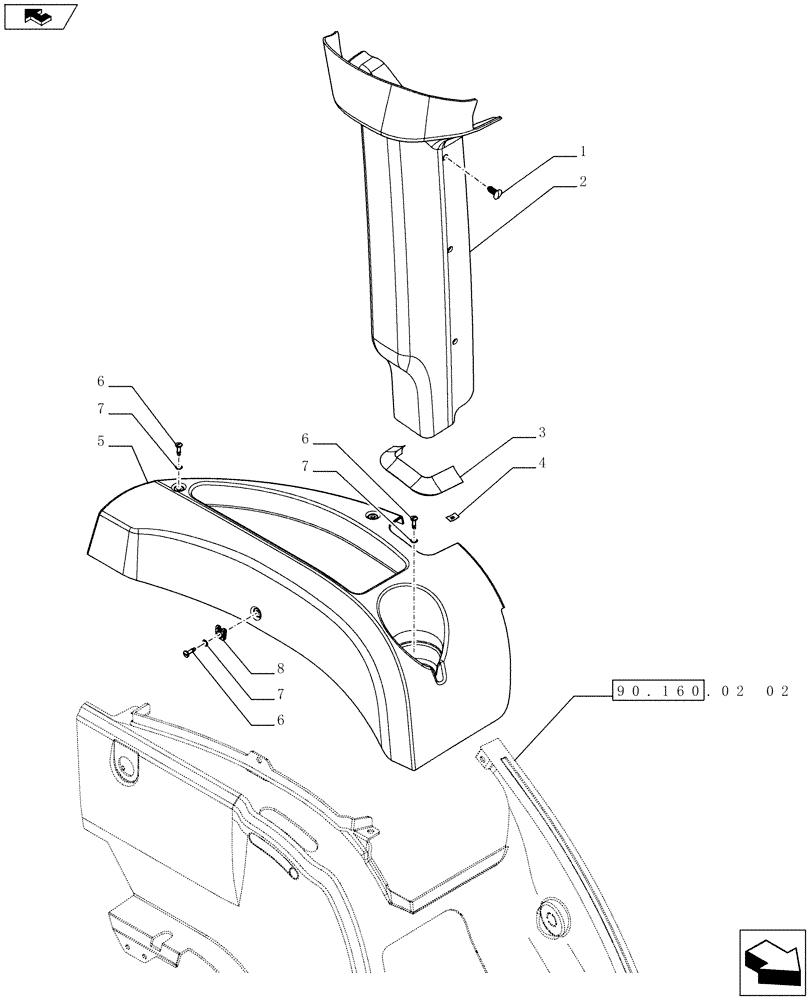

Схема запчастей Case IH FARMALL 65C - (90.160.02[01]) - CONTROLS COVER - LH - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
7
6
5
6
home
90.160.02 02
3
1
7
8
2
7
6

Артикул

Название

Примечание

Количество

1

82023460

STUD,M7.85 x 19.50mm, Plastic

6шт.

2

84310220

TRIM PANEL

1шт.

3

84347880

RUBBER SEAL,123.8mm L

1шт.

4

14183474

PUSH-ON NUT,M4, Push

5шт.

5

84316095

TRIM PANEL

1шт.

6

84354393

PIN,18.8mm L

4шт.

7

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

4шт.

8

84291986

CLIP,18.8mm L x 15.9mm W

1шт.

Выбрано товаров: 8
