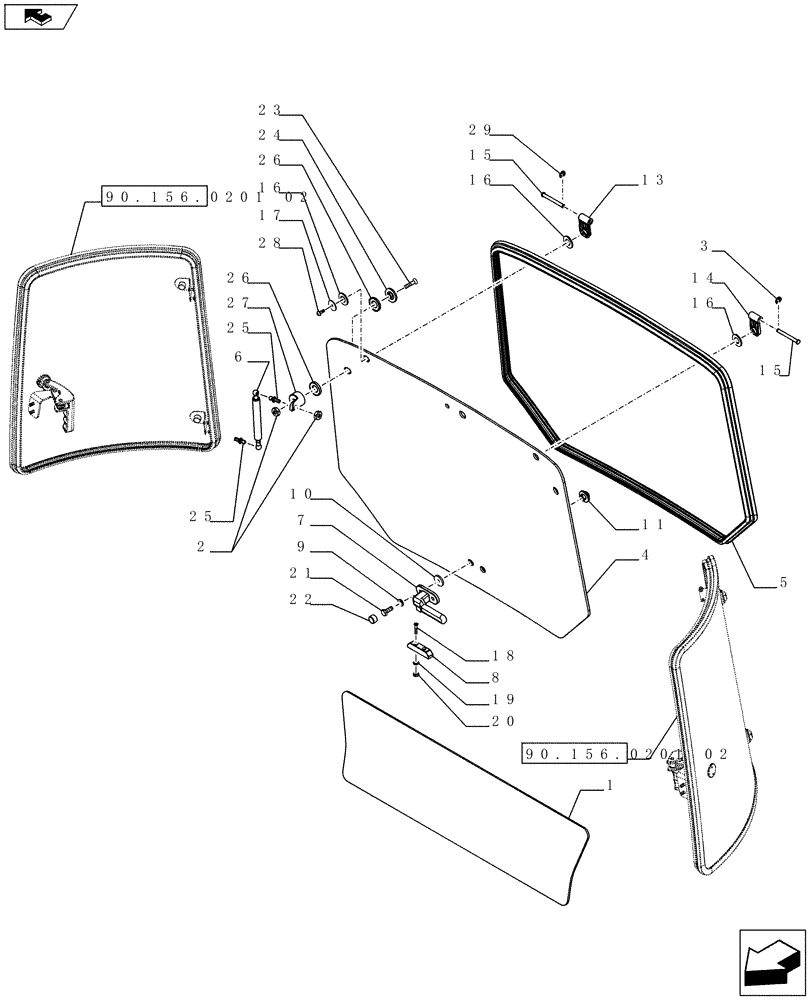

Запчасти Case IH FARMALL 65C (90.156.0201[01]) - CAB WITH OPENABLE SIDLE GLASSES - REAR GLASSES (VAR.332606-337606 / 743573; VAR.331606-336606-339606) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84214858

GLASS

1шт.

2

16104121

NUT,M8 x 1.25, Cl 10

4шт.

3

11087776

CIRCLIP,Ext., M6, BLO

2шт.

4

84224148

GLASS

1шт.

5

84224276

SEAL, GLASS

Window

2шт.

6

84280589

GAS STRUT

2шт.

7

5089564

HANDLE

1шт.

8

5094377

BRACKET

1шт.

9

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

10

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

6шт.

11

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

2шт.

12

5094141

NUT,Spheric, M8

2шт.

13

176246A2

HINGE

RH, Serial Range: -C7228

1шт.

13

84545736

HINGE

RH, Start Serial: D7228

1шт.

14

176245A2

HINGE

LH, Serial Range: -C7228

1шт.

14

84545734

HINGE

LH, Start Serial: D7228

1шт.

15

1535323C1

PIN,8mm OD x 78.5mm L

, Serial Range: -C7228

2шт.

15

84545739

PIN

, Start Serial: D7228

2шт.

16

180361A2

WASHER,18mm ID x 35mm OD x 3mm Thk

, Serial Range: -C7228

4шт.

16

84545738

WASHER,35mm OD x 18mm ID x 3mm Thk

, Start Serial: D7228

4шт.

17

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

2шт.

18

843-2525

SCREW,M5 x 25mm L

2шт.

19

87698783

WASHER,5.3mm ID x 8.9mm OD x 1.2mm Thk

2шт.

20

14048617

LOCK NUT,M5 x .8

2шт.

21

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

22

5089481

CAP,17mm OD

2шт.

23

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

24

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

1шт.

25

44910148

BALL STUD,M8 x 1.25

4шт.

26

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

4шт.

27

44910149

ARTICULATION

2шт.

28

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.
