Запчасти Case IH FARMALL 65C (90.156.0101[02]) - CAB WITH OPENABLE WINDSCREEN - HANDLES AND RELEVANT PARTS - ISO (VAR.331606-339606) (90) - PLATFORM, CAB, BODYWORK AND DECALS

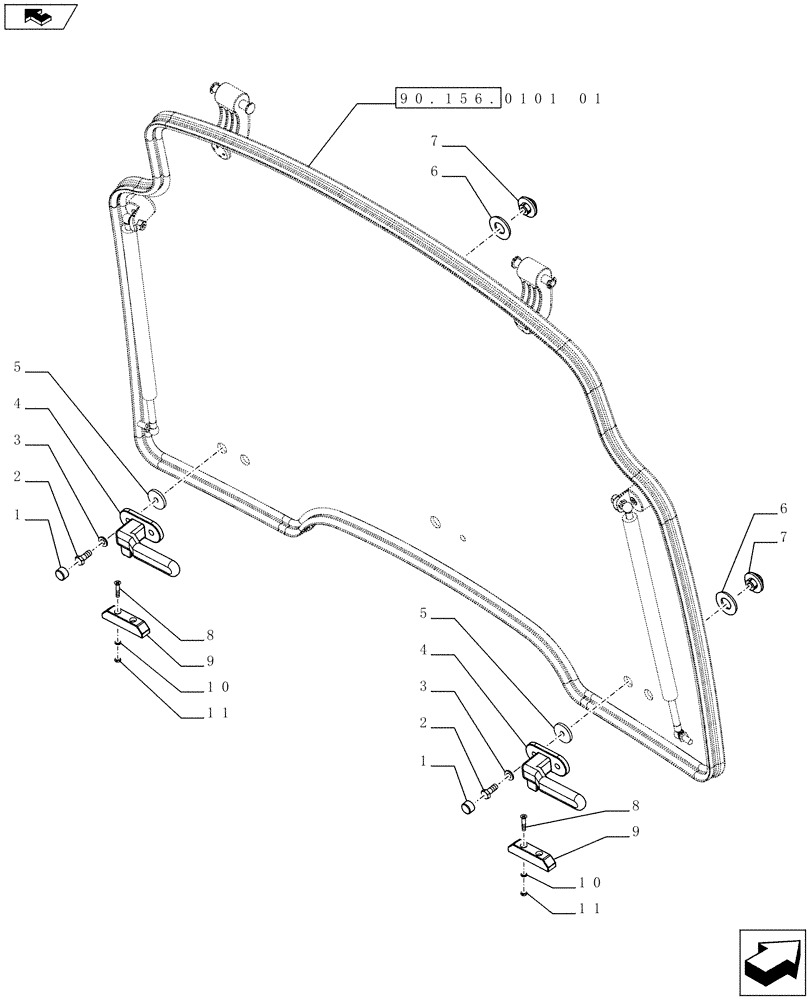

Схема запчастей Case IH FARMALL 65C - (90.156.0101[02]) - CAB WITH OPENABLE WINDSCREEN - HANDLES AND RELEVANT PARTS - ISO (VAR.331606-339606) (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
4
1
3
5
6
8
11
7
5
10
2
1
6
home
90.156.0101 01
4
3
9
2
11
10
9

Артикул

Название

Примечание

Количество

1

5089481

CAP,17mm OD

4шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

3

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

4

5089564

HANDLE

2шт.

5

5094375

WASHER,8mm ID x 32.2mm OD x 3.9mm Thk

4шт.

6

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

4шт.

7

5094141

NUT,Spheric, M8

4шт.

8

843-2525

SCREW,M5 x 25mm L

4шт.

9

5094377

BRACKET

2шт.

10

87698783

WASHER,5.3mm ID x 8.9mm OD x 1.2mm Thk

4шт.

11

14048617

LOCK NUT,M5 x .8

4шт.

Выбрано товаров: 11
