(90.156.0101[01]) - CAB WITH OPENABLE WINDSCREEN - GLASSES AND RELEVANT PARTS - ISO (VAR.331606-339606)

Запчасти Case IH FARMALL 65C (90.156.0101[01]) - CAB WITH OPENABLE WINDSCREEN - GLASSES AND RELEVANT PARTS - ISO (VAR.331606-339606) (90) - PLATFORM, CAB, BODYWORK AND DECALS

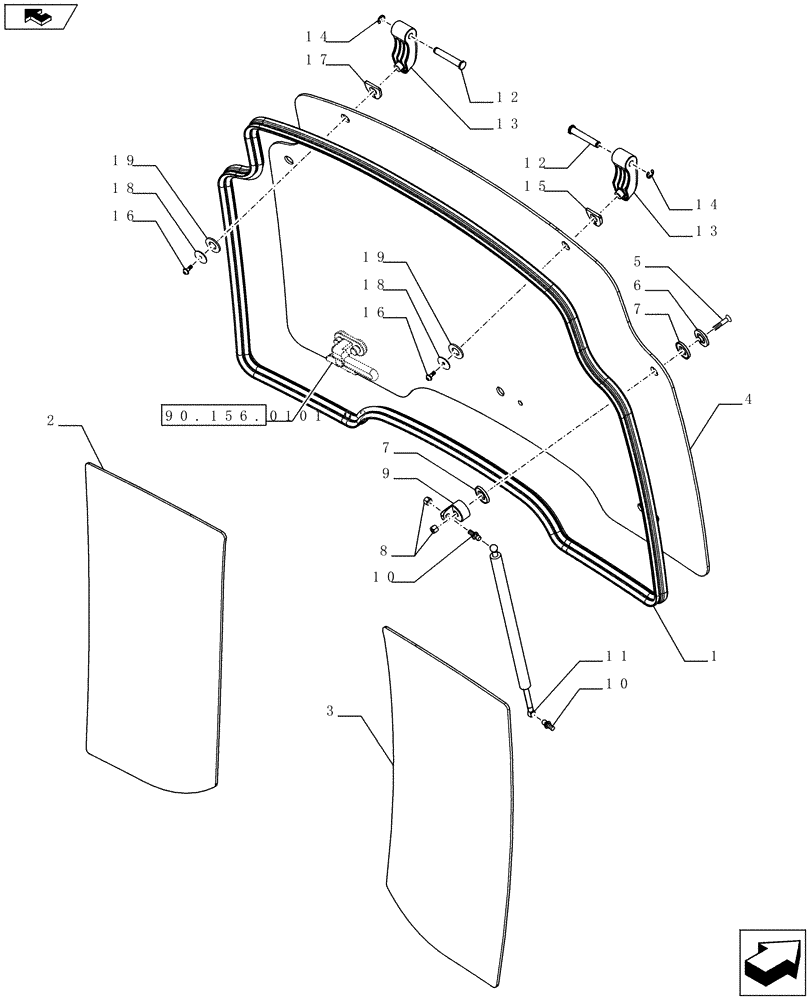

Схема запчастей Case IH FARMALL 65C - (90.156.0101[01]) - CAB WITH OPENABLE WINDSCREEN - GLASSES AND RELEVANT PARTS - ISO (VAR.331606-339606) (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
10
5
8
13
19
14
12
7
1
12
home
90.156.0101 02
10
19
4
3
7
16
14
9
18
13
17
18
6
15
2
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84224275

SEAL, GLASS

Window

1шт.

2

84218212

GLASS

LH

1шт.

3

84218211

GLASS

RH

1шт.

4

84218213

GLASS

1шт.

5

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

2шт.

6

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

7

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

4шт.

8

16104121

NUT,M8 x 1.25, Cl 10

4шт.

9

44910149

ARTICULATION

2шт.

10

44910148

BALL STUD,M8 x 1.25

4шт.

11

84280584

GAS STRUT

2шт.

12

84281904

PIN,11.8mm OD x 75.5mm L

2шт.

13

84281901

SUPPORT

2шт.

14

11088071

CIRCLIP,M10

2шт.

15

84281905

RUBBER SEAL

RH

1шт.

16

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

17

84281906

RUBBER SEAL

LH

1шт.

18

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

2шт.

19

84545738

WASHER,35mm OD x 18mm ID x 3mm Thk

2шт.
