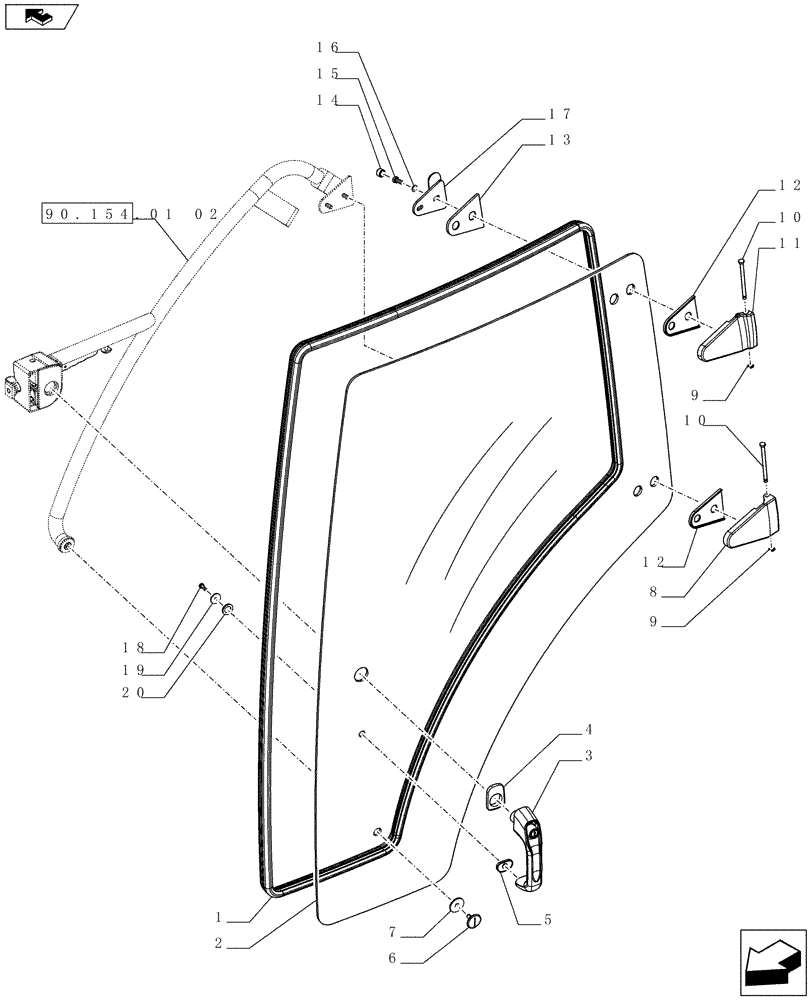

Запчасти Case IH FARMALL 65C (90.154.01[01]) - CAB DOORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224130

SEAL, GLASS,4150mm L

2шт.

2

84224131

CAB GLASS ASSY

RH

1шт.

2

84224132

CAB GLASS

LH

1шт.

3

82029168

HANDLE

2шт.

4

82029170

GASKET,5-6.5mm Thk, 32mm ID

2шт.

5

82029171

GASKET,5mm Thk, 12mm ID

2шт.

6

82013304

SCREW,Pan HD, M8 x 22mm

2шт.

7

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

2шт.

8

87700818

HINGE

2шт.

9

11087976

CIRCLIP,Ext., M8, BLO

4шт.

10

5091925

PIN,8mm OD x 97mm L

4шт.

11

84329980

HINGE

LH

1шт.

11

84330148

HINGE

RH

1шт.

12

87620762

RUBBER PAD

4шт.

13

87620476

RUBBER PAD

2шт.

14

5089481

CAP,17mm OD

4шт.

15

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

16

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

17

84319884

BRACKET

RH

1шт.

17

84319872

BRACKET

LH

1шт.

18

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

19

12640607

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.

20

82029142

GASKET,16mm ID x 26mm OD x 3mm Thk

2шт.
