Запчасти Case IH FARMALL 65C (90.152.0101[01]) - CAB WITH HIGH VISIBILITY PANEL - ROOF (VAR.333606 / 743574; VAR.336606-339606) - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

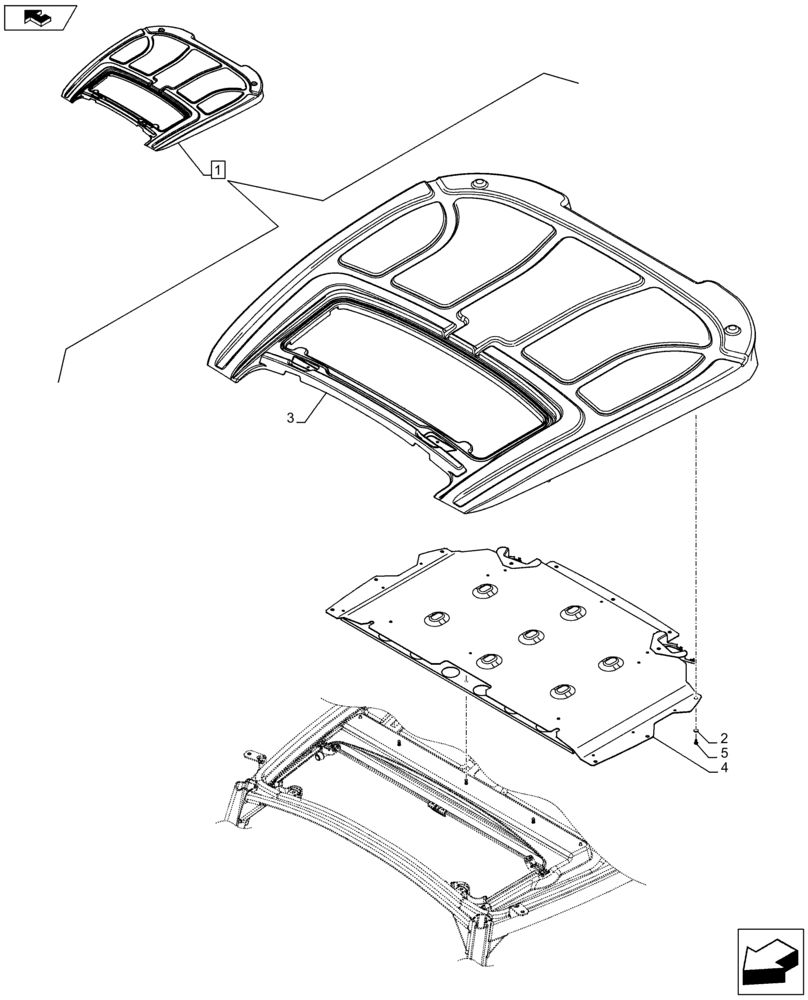

Схема запчастей Case IH FARMALL 65C - (90.152.0101[01]) - CAB WITH HIGH VISIBILITY PANEL - ROOF (VAR.333606 / 743574; VAR.336606-339606) - END YR 09-OCT-2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
home
2
3
4
5

Артикул

Название

Примечание

Количество

1

84576276

ROOF

ASSY, Contains Ref. 2-5

1шт.

NAR Market, 75C Model Only

1шт.

1

84576252

ROOF

ASSY, Contains Ref. 2-5

1шт.

ISO Market Models Only

1шт.

2

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

9шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

84319253

STEEL PLATE

1шт.

5

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

9шт.

Выбрано товаров: 8
