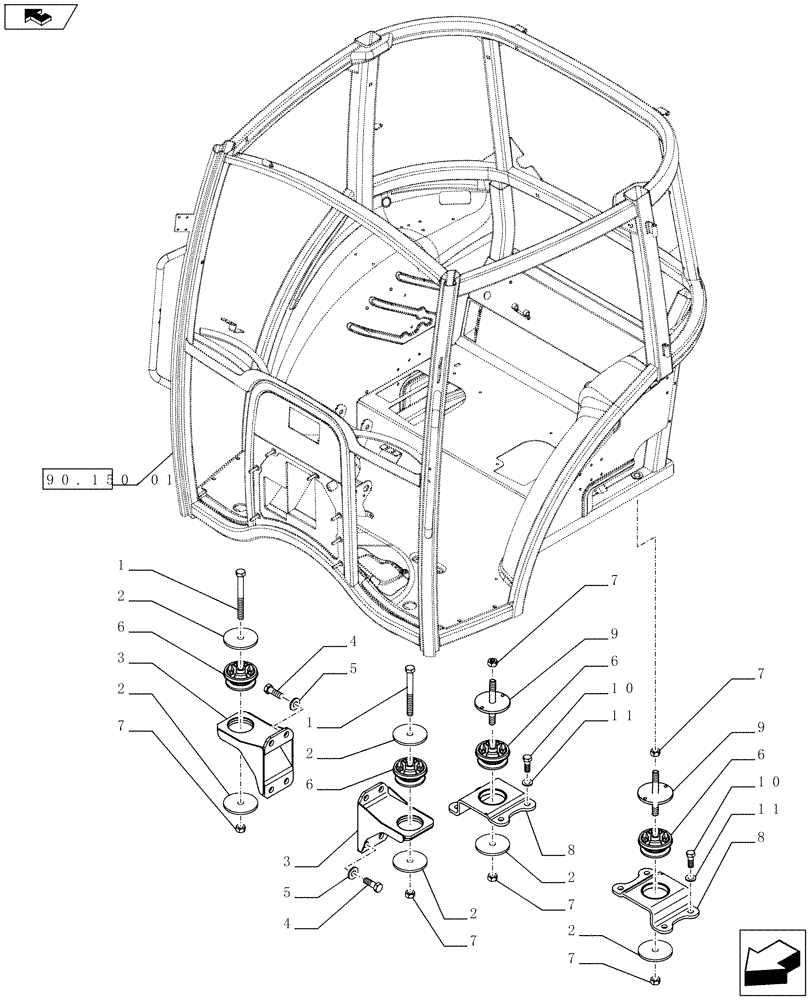

Запчасти Case IH FARMALL 65C (90.150.13) - CAB SUPPORTS - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

15990931

BOLT,Hex, M20 x 1.5 x 190, 10.9

2шт.

2

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

6шт.

3

84261755

SUPPORT

2шт.

4

11125131

BOLT,Hex, M20 x 70, 10.9

4шт.

4

15224034

BOLT,Hex, M20 x 65mm, Cl 10.9, Full Thd

4шт.

5

1190848

BELLEVILLE WASHER,M20 Bolt Size x 45mm OD x 5mm Thk

8шт.

6

83983548

ISOLATOR,120mm OD x 64mm L

4шт.

7

86015195

NUT,M20 x 1.5, Cl 10

6шт.

8

84261756

SUPPORT

2шт.

9

84355204

SPACER

1шт.

10

15984337

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

8шт.

11

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.
