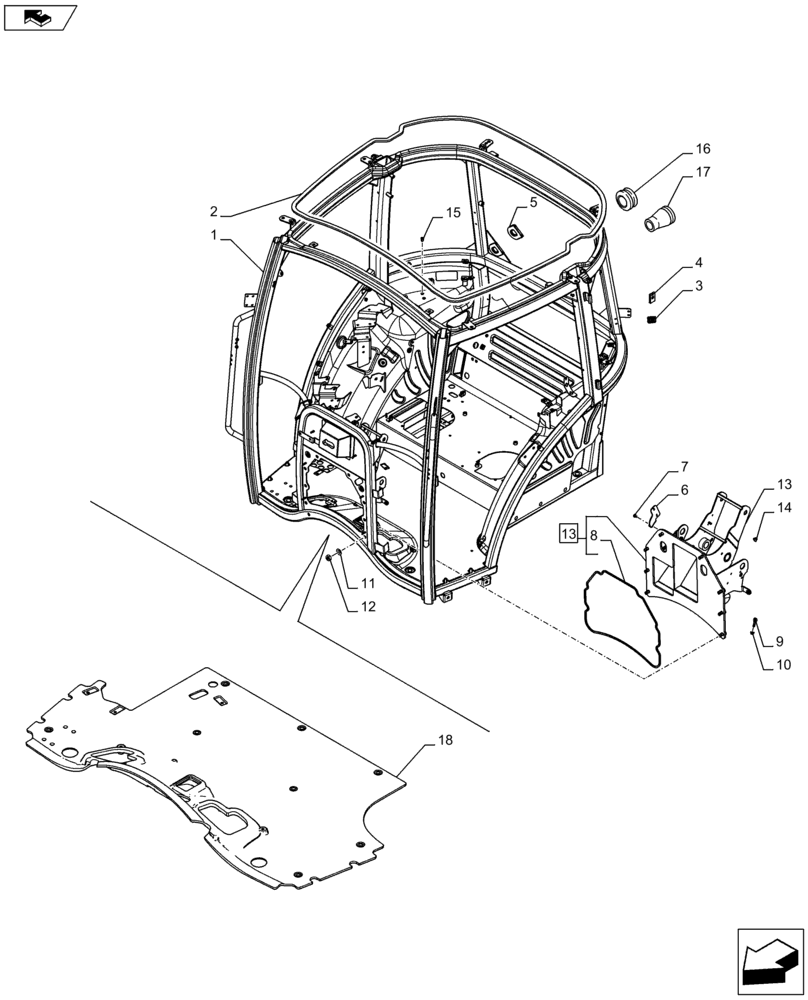

Запчасти Case IH FARMALL 65C (90.150.01) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84311182

CAB BODY

1шт.

1

84222148

CAB BODY

1шт.

With Open. Side Glasses and open. Windscreen, VAR.331606-339606

1шт.

2

84414634

SEAL

1шт.

3

84291986

CLIP,18.8mm L x 15.9mm W

3шт.

4

14371774

SPRING NUT,M6, U, 12mm long

19шт.

5

84290317

PLUG

1шт.

6

84219482

BRACKET

1шт.

7

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

2шт.

8

84265757

RUBBER SEAL,3mm Thk

1шт.

9

5115351

HOOK,M6 x 1

1шт.

10

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

11

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

8шт.

12

12164721

NUT,M10 x 1.25, Cl 10

8шт.

13

47360484

SUPPORT

Contain Ref. 8, Years: -23-JUN-14

1шт.

13

47580766

SPARK ARRESTER

Contain Ref. 8, Start Year: 24-JUN-14

1шт.

14

82003283

PLUG,10.5mm OD

1шт.

15

15624411

RIVET,Flat, M6 OD x 16mm L

4шт.

16

81862738

PLUG,M38 x 28 x 5mm

1шт.

17

81864216

GROMMET

1шт.

18

84316786

CARPET

, Years: -11-APR-14

1шт.

18

47371247

CARPET

, Start Year: 12-APR-14

1шт.
