Запчасти Case IH FARMALL 65C (90.124.0101[10]) - DRIVER SEAT, W/ CAB (VAR.332850) - BEGINE YR 26-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

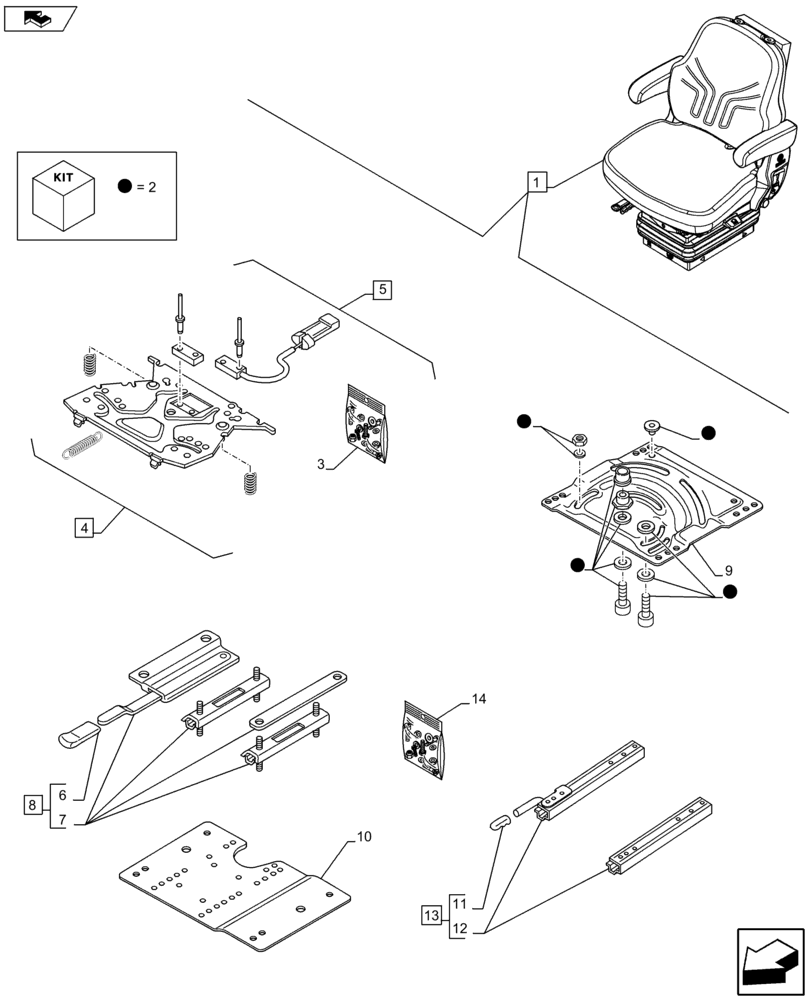

Схема запчастей Case IH FARMALL 65C - (90.124.0101[10]) - DRIVER SEAT, W/ CAB (VAR.332850) - BEGINE YR 26-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
5
14
home
11
3
2
2
9
13
8
2
7
12
1
2
2
10
4

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

1шт.

2

1-34-751-712

SET OF PARTS

1шт.

3

84191201

SET OF PARTS

SMALL PARTS SEAT SWITCH

1шт.

4

84253109

COMPENSATOR

ASSY, Incl 3

1шт.

5

84487915

SWITCH

ASSY, Incl 3

1шт.

6

82034956

HANDLE

1шт.

7

NSS

NOT SOLD SEPARAT

FOR/AFT ISOLATOR, Incl in 8

1шт.

8

82034927

ISOLATOR

ASSY, Incl 6 - 7, 14

1шт.

9

84247568

REPAIR KIT

ASSY, Incl 2

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE, Incl in 1

1шт.

11

9971715

HANDLE

1шт.

12

NSS

NOT SOLD SEPARAT

Incl in 13

1шт.

13

87331929

SET OF PARTS

ASSY, Incl 11 - 12, 14

1шт.

14

47540052

KIT

FIXING PARTS

1шт.

Выбрано товаров: 14
