(90.124.0101[07]) - DRIVER SEAT, AIR COMPRESSOR, HARNESS (VAR.332850) - END YR 25-JUL-2013

Запчасти Case IH FARMALL 65C (90.124.0101[07]) - DRIVER SEAT, AIR COMPRESSOR, HARNESS (VAR.332850) - END YR 25-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

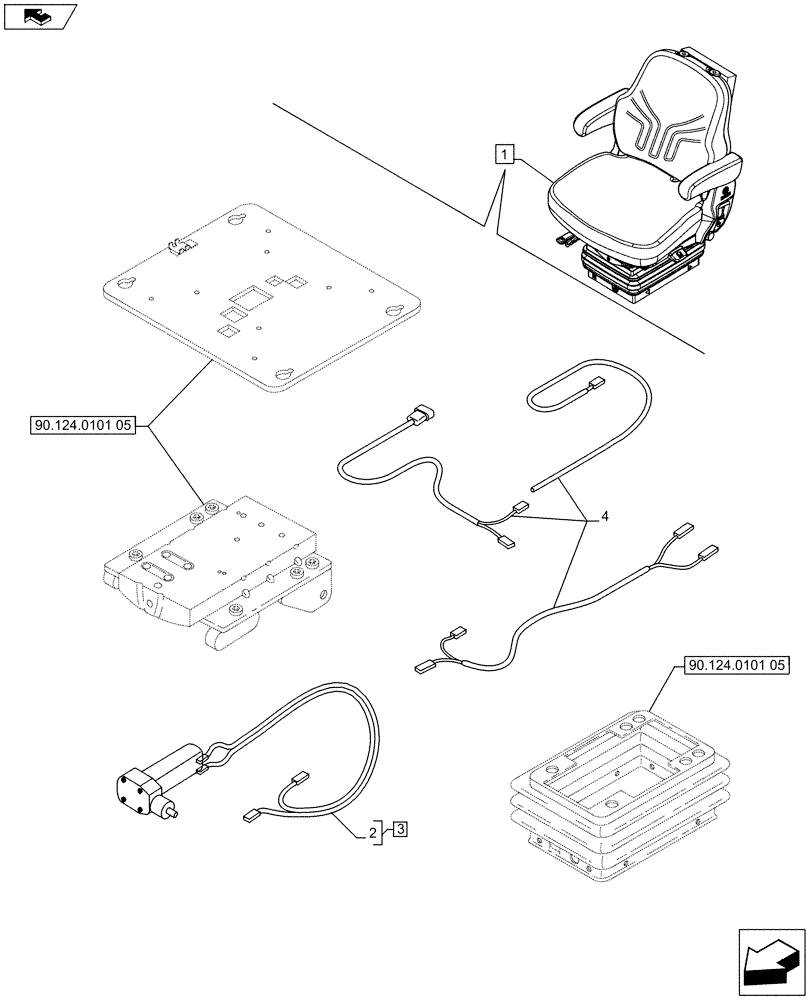

Схема запчастей Case IH FARMALL 65C - (90.124.0101[07]) - DRIVER SEAT, AIR COMPRESSOR, HARNESS (VAR.332850) - END YR 25-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
90.124.0101 05
3
4
home
90.124.0101 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347497

DRIVER SEAT

ASSY, Incl 2 - 4

1шт.

Includes Also 55.408.05, 90.124.0101 (02) to 90.124.0101 (06)

1шт.

2

NSS

NOT SOLD SEPARAT

Air Compressor Harness, Incl in 3

1шт.

3

87331939

AIR COMPRESSOR KIT

ASSY, Incl 2

1шт.

4

9971521

KIT

Air Compressor Harness

1шт.
