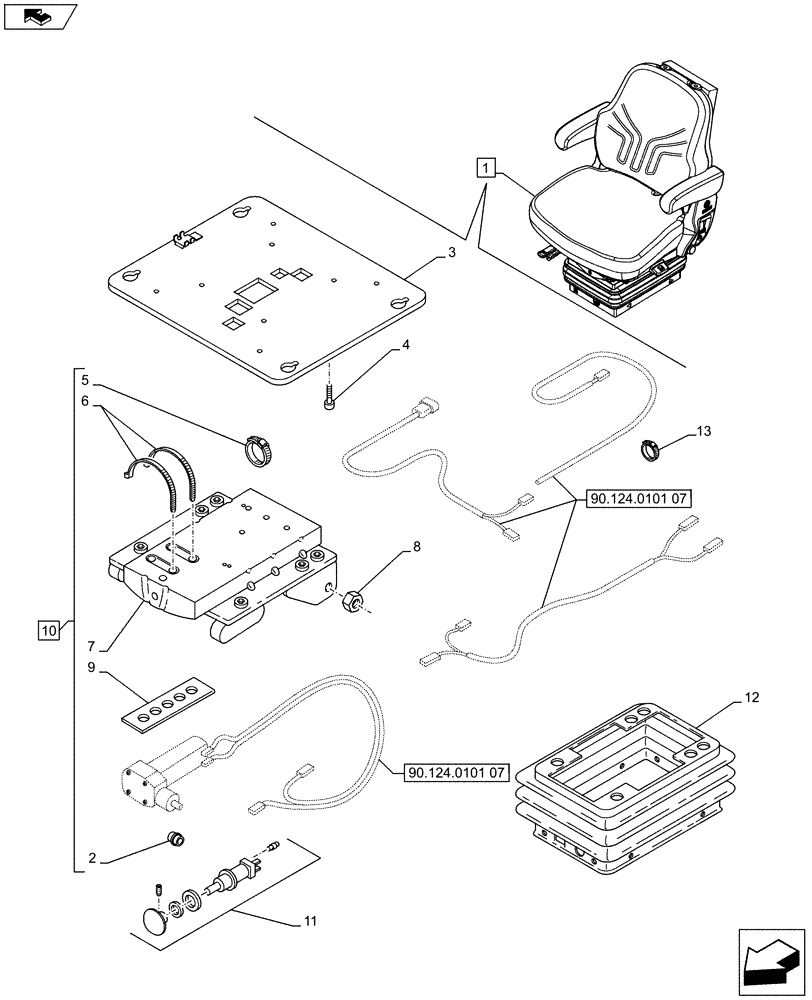

Запчасти Case IH FARMALL 65C (90.124.0101[05]) - DRIVER SEAT, W/ CAB (VAR.332850) - END YR 25-JUL-2013 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84347497

DRIVER SEAT

ASSY, Incl 2 - 13

1шт.

Includes Also 55.408.05, 90.124.0101 (02) to 90.124.0101 (04), 90.124.0101 (06) to 90.124.0101 (07)

1шт.

2

87331945

FERRULE

2шт.

3

82035134

MOUNTING PLATE

1шт.

4

82034896

SCREW,M8 x 1.25 x 1.25mm

4шт.

5

87567529

CABLE TIE,200mm L

1шт.

6

84171410

WIRE CLAMP

3шт.

7

9971516

MOUNTING PLATE

1шт.

8

82034883

NUT,CL 8.8

2шт.

9

84171558

PLATE

1шт.

10

87331939

AIR COMPRESSOR KIT

ASSY, Incl 2, 5, 6, 9

1шт.

11

87705191

KIT

Valve

1шт.

12

82035104

BELLOWS

1шт.

13

82035055

CABLE TIE,M4.7 x 204

1шт.
