Запчасти Case IH FARMALL 65C (90.124.0101[01]) - FABRIC SEAT WITH SAEFTY SWITCH, ARMREST, AIR SUPENSION AND 15° SWIVEL - W/CAB (VAR.332850) (90) - PLATFORM, CAB, BODYWORK AND DECALS

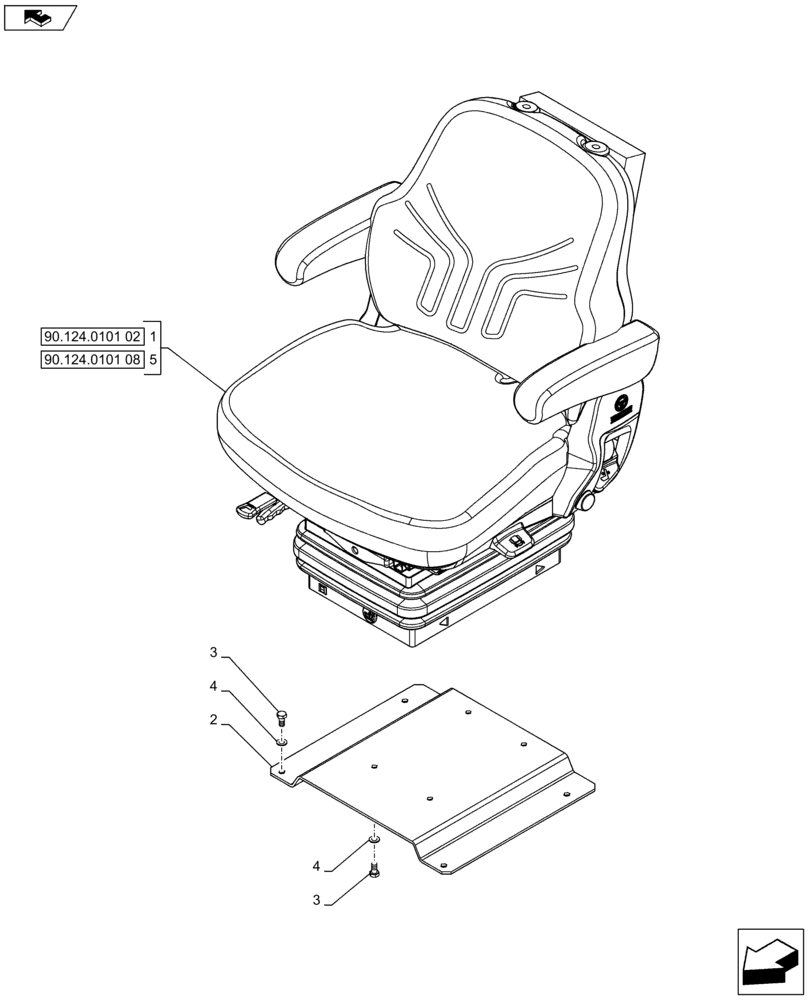

![Схема запчастей Case IH FARMALL 65C - (90.124.0101[01]) - FABRIC SEAT WITH SAEFTY SWITCH, ARMREST, AIR SUPENSION AND 15° SWIVEL - W/CAB (VAR.332850) (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/523265.png)
1
3
90.124.0101 08
4
2
5
90.124.0101 02
3
4
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
84347497
DRIVER SEAT
, Years: -25-JUL-13
1шт.
2
84222314
SEAT SUPPORT
1шт.
3
16043434
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
8шт.
4
11194074
BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk
8шт.
5
47488681
DRIVER SEAT
, Start Year: 26-JUL-13
1шт.
Выбрано товаров: 5
