Запчасти Case IH FARMALL 65C (90.124.01[05]) - FABRIC SEAT WITH SAFETY SWITCH, ARMREST AND AIR SUSPENSION - W/CAB (VAR.331850) (90) - PLATFORM, CAB, BODYWORK AND DECALS

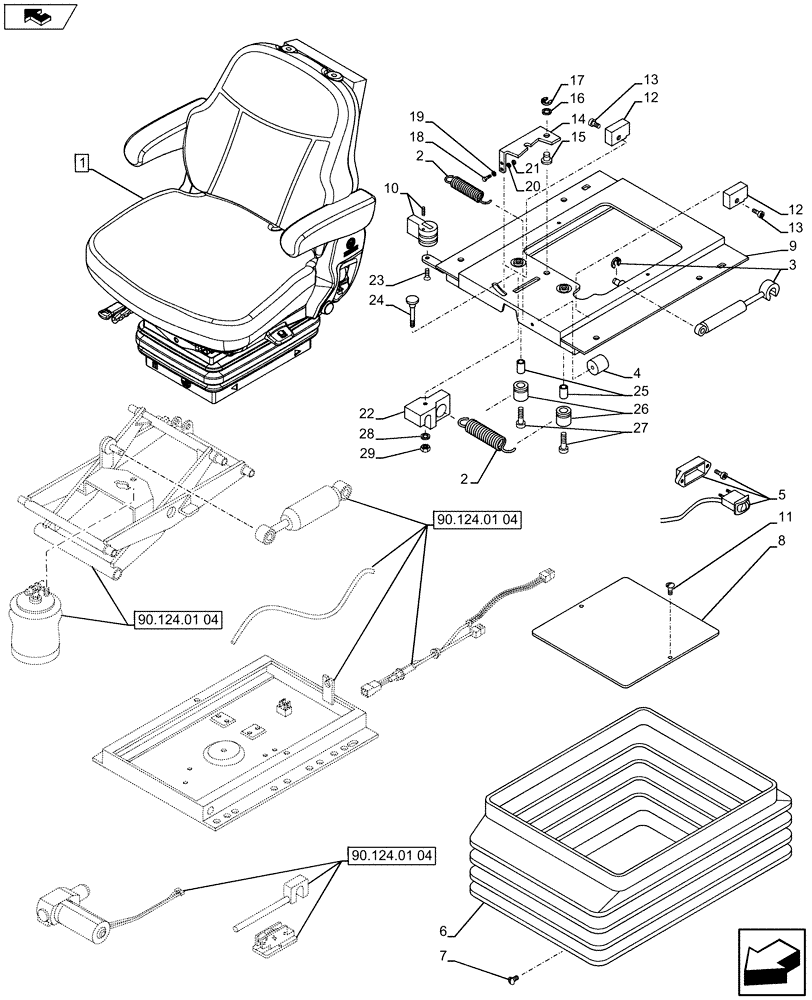

Схема запчастей Case IH FARMALL 65C - (90.124.01[05]) - FABRIC SEAT WITH SAFETY SWITCH, ARMREST AND AIR SUSPENSION - W/CAB (VAR.331850) (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
2
90.124.01 04
17
12
14
20
23
9
1
13
4
18
7
13
26
27
19
8
15
10
16
3
5
22
29
21
25
home
6
90.124.01 04
2
90.124.01 04
28
24
11

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

Assy, Incl 2 - 29

1шт.

Includes Also 90.124.01 (02) to 90.124.01 (04)

1шт.

2

47439028

KIT

Springs

1шт.

3

47438959

KIT

Shock Absorber

1шт.

4

47439001

KIT

Rubbers Bump Stop

1шт.

5

47398256

KIT

On/Off Button

1шт.

6

47438987

BELLOWS

1шт.

7

47438981

KIT

Bellow Clips

1шт.

8

NSS

NOT SOLD SEPARAT

Plate. Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

10

47439051

KIT

Shock Absorber Lever

1шт.

11

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

2шт.

26

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

2шт.

27

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

2шт.

28

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

Выбрано товаров: 30
