Запчасти Case IH FARMALL 65C (90.120.02[02]) - SEAT, MECHANICAL - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

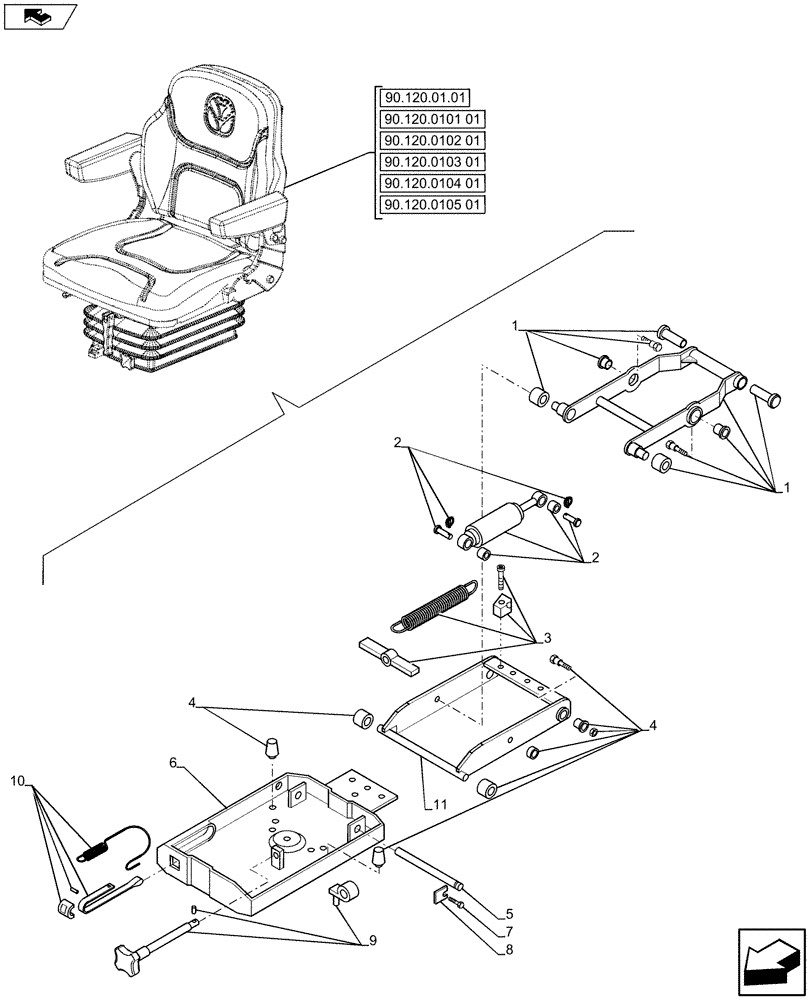

Схема запчастей Case IH FARMALL 65C - (90.120.02[02]) - SEAT, MECHANICAL - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.0104 01
2
1
90.120.0102 01
2
3
9
4
6
10
11
8
4
90.120.0103 01
90.120.0101 01
5
7
90.120.0105 01
1
90.120.01.01
home

Артикул

Название

Примечание

Количество

1

47388497

KIT

Scissor Roller

1шт.

2

47388487

KIT

Shock Absorber

1шт.

3

47388076

KIT

Springs

1шт.

4

47388486

KIT

Rubbers Bump Stop

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in Seat Assy

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in Seat Assy

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in Seat Assy

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in Seat Assy

1шт.

9

47387994

KIT

Height Adjustment Lever

1шт.

10

47382403

KIT

Weight Indicator

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in Seat Assy

1шт.

Выбрано товаров: 11
