Запчасти Case IH FARMALL 65C (90.120.0101[03]) - FABRIC SEAT - W/CAB - NAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

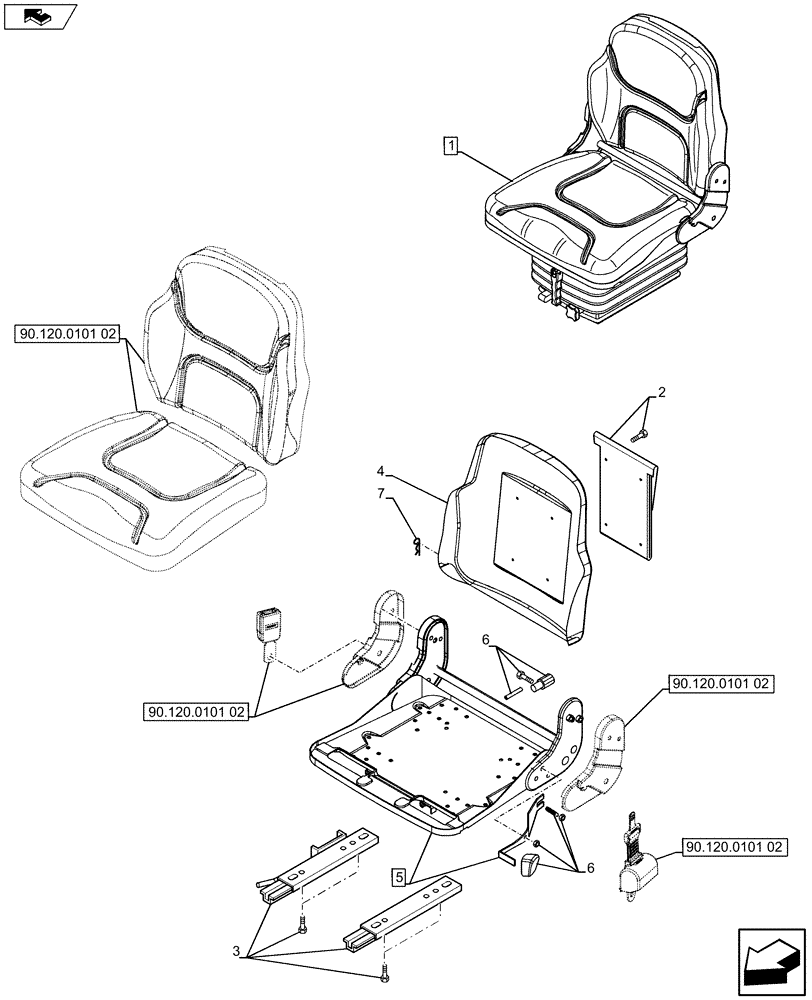

Схема запчастей Case IH FARMALL 65C - (90.120.0101[03]) - FABRIC SEAT - W/CAB - NAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.0101 02
90.120.0101 02
6
90.120.0101 02
5
2
3
6
home
90.120.0101 02
1
7
4

Артикул

Название

Примечание

Количество

1

84347510

DRIVER SEAT

Assy, Incl 2 - 7

1шт.

Includes Also 90.120.0101 (02) and 90.120.02

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

47382367

KIT

RH & LH Rails

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Hardware, Assy, Incl 6

1шт.

6

47387993

KIT

Hardware

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

Выбрано товаров: 8
