(90.120.0101[02]) - FABRIC SEAT - W/CAB - NAR

Запчасти Case IH FARMALL 65C (90.120.0101[02]) - FABRIC SEAT - W/CAB - NAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

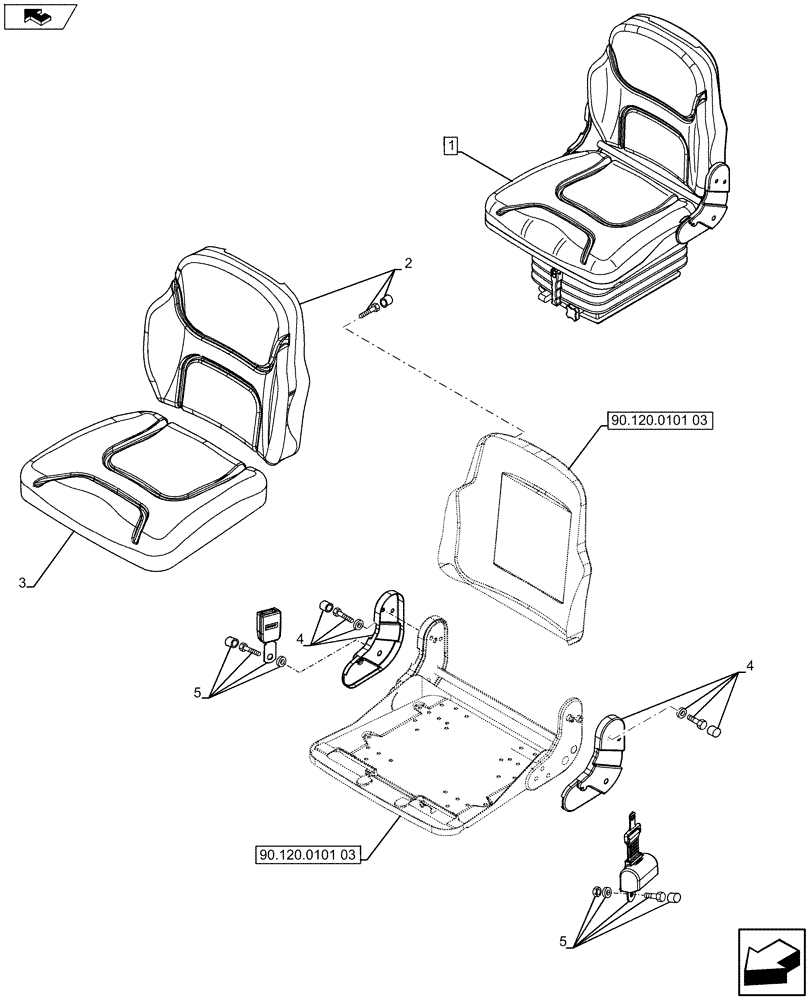

Схема запчастей Case IH FARMALL 65C - (90.120.0101[02]) - FABRIC SEAT - W/CAB - NAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
5
4
1
90.120.0101 03
4
90.120.0101 03
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347510

DRIVER SEAT

Assy, Incl 2 - 5

1шт.

Includes Also 90.120.0101 (03) and 90.120.02

1шт.

2

84352163

BACKREST

1шт.

3

84352165

SEAT CUSHION

Includes Operator's Presence Sensor (DOPS)

1шт.

4

47388032

KIT

Armrest Covers & Hardware

1шт.

5

84361127

SEAT BELT,73.5mm W x 1120mm L

L=1120mm

1шт.

5

84361200

SEAT BELT,51mm W x 1470mm L

L=1470mm

1шт.

Выбрано товаров: 7
