Запчасти Case IH FARMALL 65C (90.116.04) - NOISE REDUCTING FRONT WINDSHIELD - L/CAB - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS

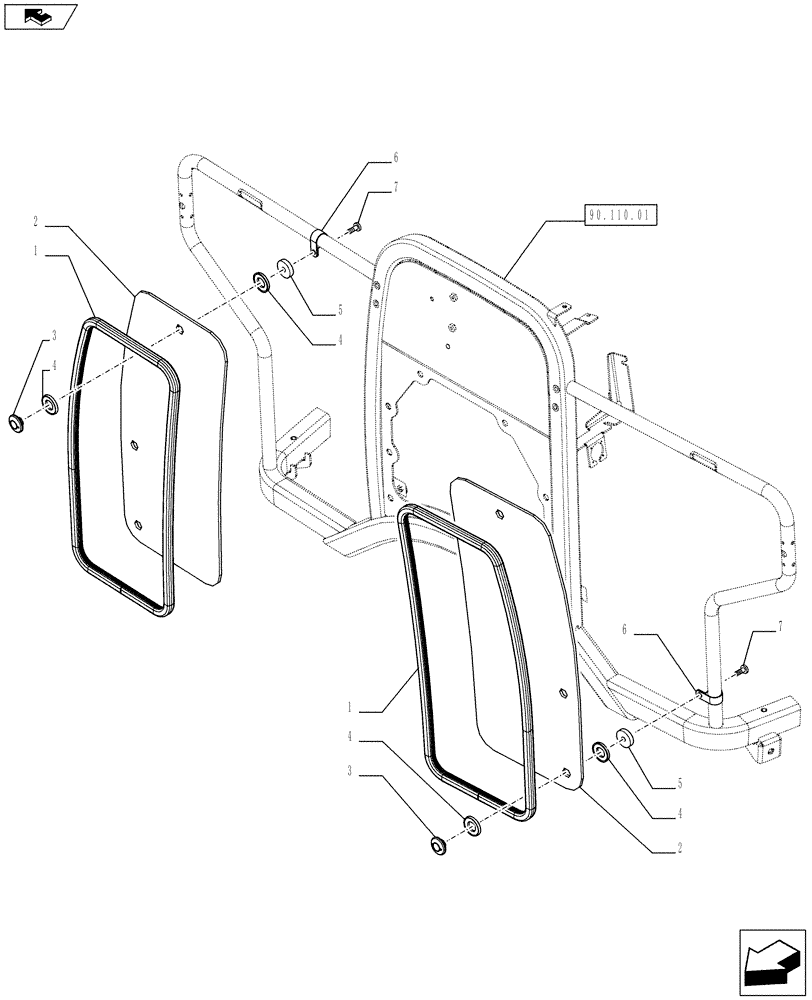

Схема запчастей Case IH FARMALL 65C - (90.116.04) - NOISE REDUCTING FRONT WINDSHIELD - L/CAB - ISO (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
3
4
5
90.110.01
home
2
7
6
3
5
4
4
4
1
6
7

Артикул

Название

Примечание

Количество

1

84359739

RUBBER SEAL,1610mm L

2шт.

2

84359737

GLASS

2шт.

3

5120540

KNOB

6шт.

4

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

12шт.

5

47130062

SPACER,9mm ID x 35mm OD x 8mm L

6шт.

6

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

6шт.

7

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

6шт.

Выбрано товаров: 7
