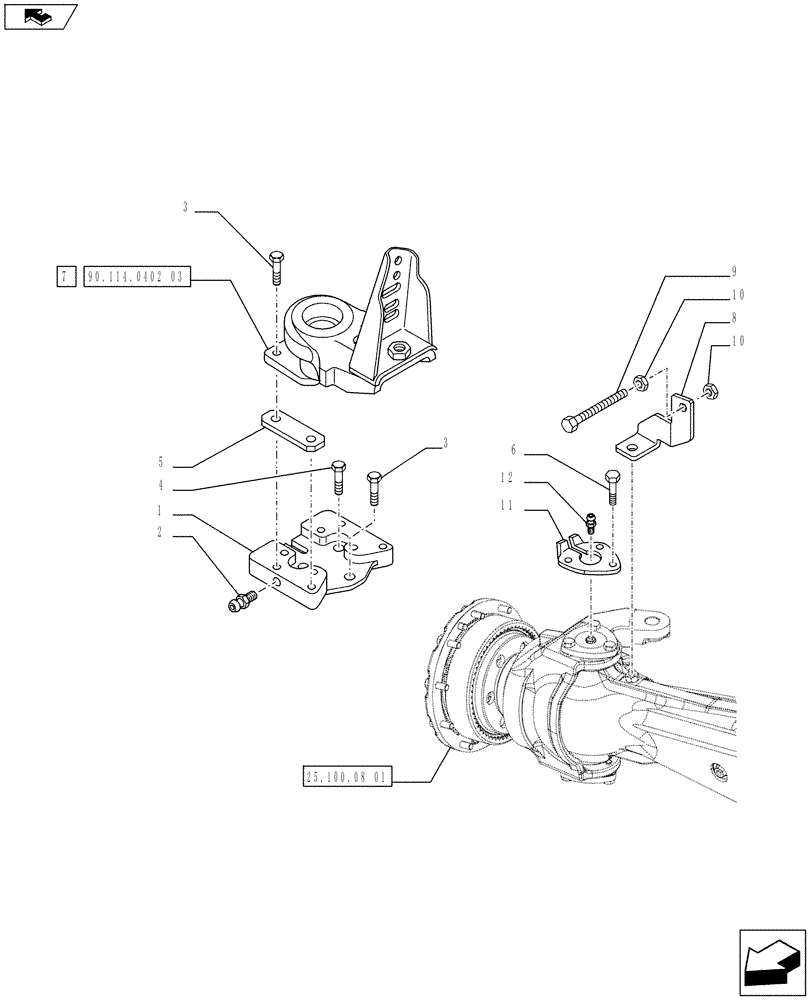

Запчасти Case IH FARMALL 65C (90.114.0402[02]) - DYNAMIC FRONT FENDERS (310MM) - SUPPORTS (VAR.338486 / 743533) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47132605

BRACKET

RH

1шт.

1

47132603

BRACKET

LH

1шт.

2

13407211

LUBE NIPPLE,M10 x 1

2шт.

3

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

10шт.

4

14233834

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

4шт.

5

87484584

SPACER

4шт.

6

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

7

87644544

SUPPORT

ASSY, RH

1шт.

7

87644517

SUPPORT

ASSY, LH

1шт.

8

87644463

BRACKET

LH

1шт.

8

87644421

BRACKET

RH

1шт.

9

15235221

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8

2шт.

10

16101521

NUT,M12 x 1.25, Cl 10

4шт.

11

87498939

PLATE

2шт.

12

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.
