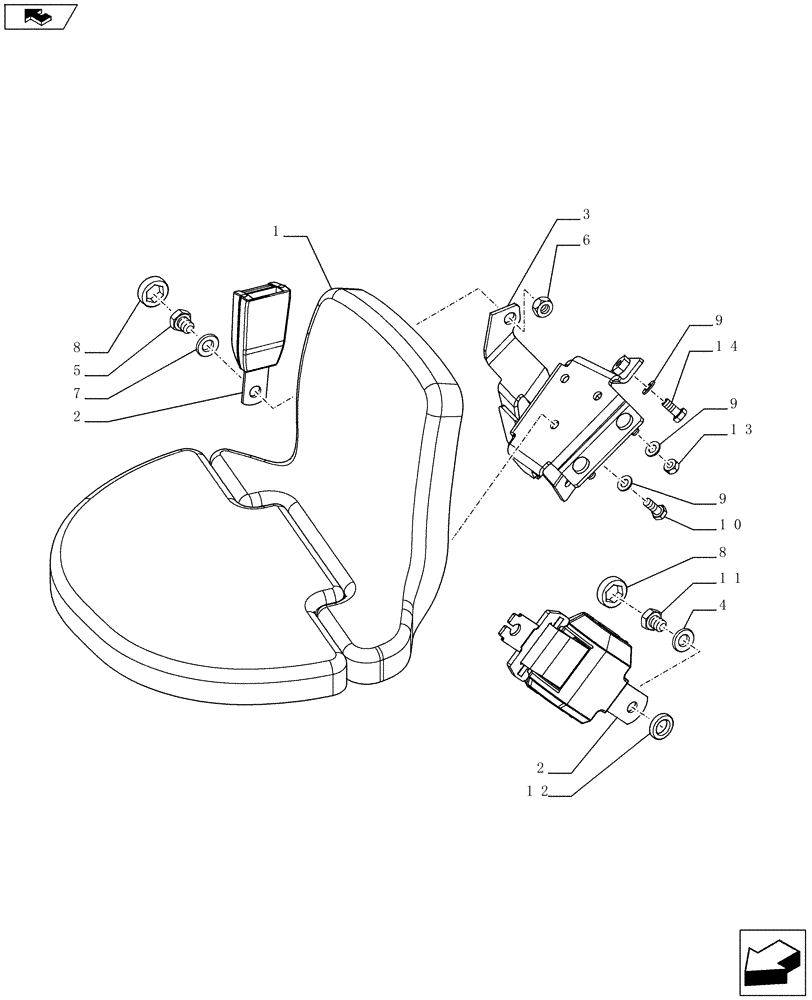

Запчасти Case IH FARMALL 65C (88.120.04) - PASSENGER SEAT (VAR.332865) (88) - ACCESSORIES

1

84309988

INSTRUCTIONAL SEAT

1шт.

2

84359362

SAFETY BELT

SAFETY BELT

1шт.

3

84295299

BRACKET

1шт.

4

84358390

WASHER,12.5mm ID x 25mm OD x 2mm Thk

1шт.

5

84358392

BOLT

1шт.

6

84358389

NUT

1шт.

7

5080269

WASHER

1шт.

8

5080271

COVER,17.5mm ID

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.

10

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

3шт.

11

86642438

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

M12 x 1.25 x 20

1шт.

12

84368053

SPACER

1шт.

13

16100814

NUT,M8, Cl 8, DAC

2шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.
