(88.100.0302) - LICENCE PLATE SIDE FENDER MOUNTED FOR LH DRIVE MARKETS - SUPPORT - ISO - L/CAB (VAR.331958 / 743589)

Запчасти Case IH FARMALL 65C (88.100.0302) - LICENCE PLATE SIDE FENDER MOUNTED FOR LH DRIVE MARKETS - SUPPORT - ISO - L/CAB (VAR.331958 / 743589) (88) - ACCESSORIES

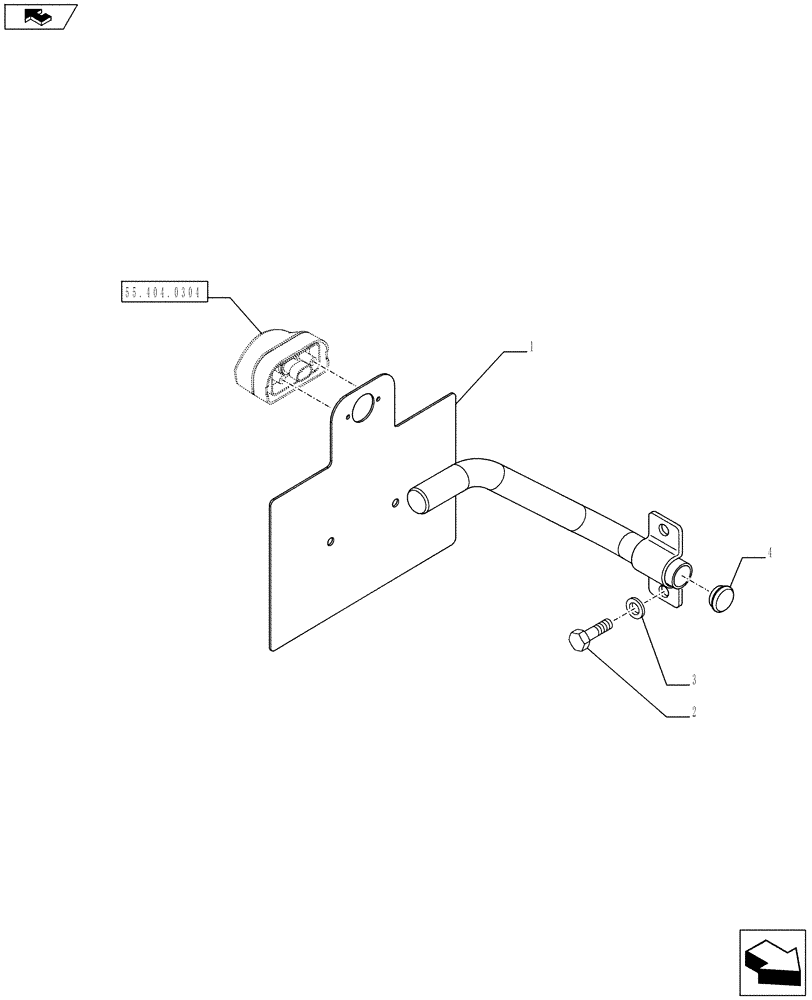

Схема запчастей Case IH FARMALL 65C - (88.100.0302) - LICENCE PLATE SIDE FENDER MOUNTED FOR LH DRIVE MARKETS - SUPPORT - ISO - L/CAB (VAR.331958 / 743589) (88) - ACCESSORIES
1
home
55.404.0304
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84343110

PLATE

1шт.

2

16043731

SCREW,Hex, M8 x 1.25 x 28mm, Cl 10.9, Full Thd

2шт.

3

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

4

5176369

PLUG,21.2mm OD

1шт.
