Запчасти Case IH FARMALL 65C (88.090.01) - DIA KIT - FRONT FENDER (310MM) - FENDERS AND BRACKETS (88) - ACCESSORIES

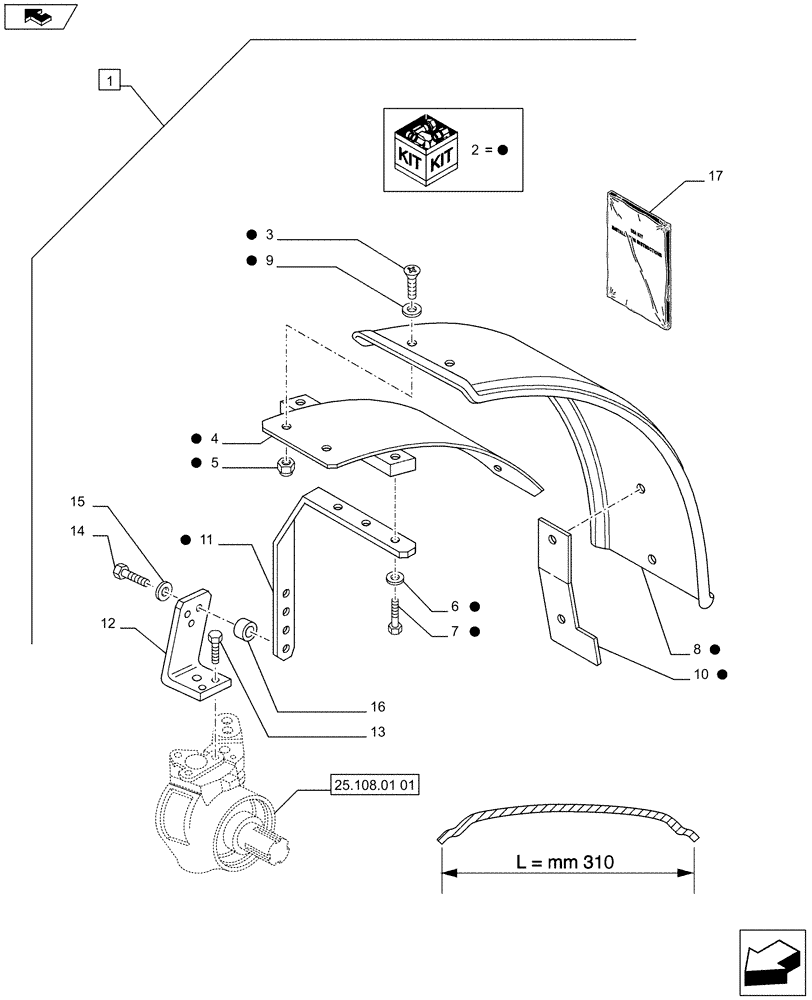

Схема запчастей Case IH FARMALL 65C - (88.090.01) - DIA KIT - FRONT FENDER (310MM) - FENDERS AND BRACKETS (88) - ACCESSORIES
4
6
12
12
3
17
13
home
25.108.01 01
12
15
12
8
12
1
1
12
2
12
10
14
5
12
1
7
12
12
9
12
16

Артикул

Название

Примечание

Количество

1

710167250

DIA KIT, TRACTOR

Front Fender 310mm, Contains Ref. 2, 12-17

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5186949

FRONT FENDER

ASSY, RH, Contains Ref. 3-11

1шт.

2

5186950

FRONT FENDER

ASSY, LH, Contains Ref. 3-11

1шт.

3

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

3шт.

3

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

1шт.

4

5179697

FRAME

RH

1шт.

4

5179698

FRAME

LH

1шт.

5

12574511

LOCK NUT,M10 x 1.25, Cl 8

3шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

7

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

5185182

COVER ASSY

1шт.

9

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

10

5179705

REINFORCEMENT

RH

1шт.

10

5179701

REINFORCEMENT

LH

1шт.

11

5186928

PILLAR

1шт.

12

5185292

SUPPORT

2шт.

13

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

6шт.

14

15541134

BOLT,Hex, M12 x 1.25 x 65mm, Cl 10.9

4шт.

15

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

16

5166193

SPACER,13mm ID x 40mm OD x 28mm L

4шт.

17

84470207

INSTRUCTION

1шт.

Выбрано товаров: 22
