(88.088.04) - DIA KIT - 2 EXTERNAL MIRRORS TELESCOPIC - W/CAB

Запчасти Case IH FARMALL 65C (88.088.04) - DIA KIT - 2 EXTERNAL MIRRORS TELESCOPIC - W/CAB (88) - ACCESSORIES

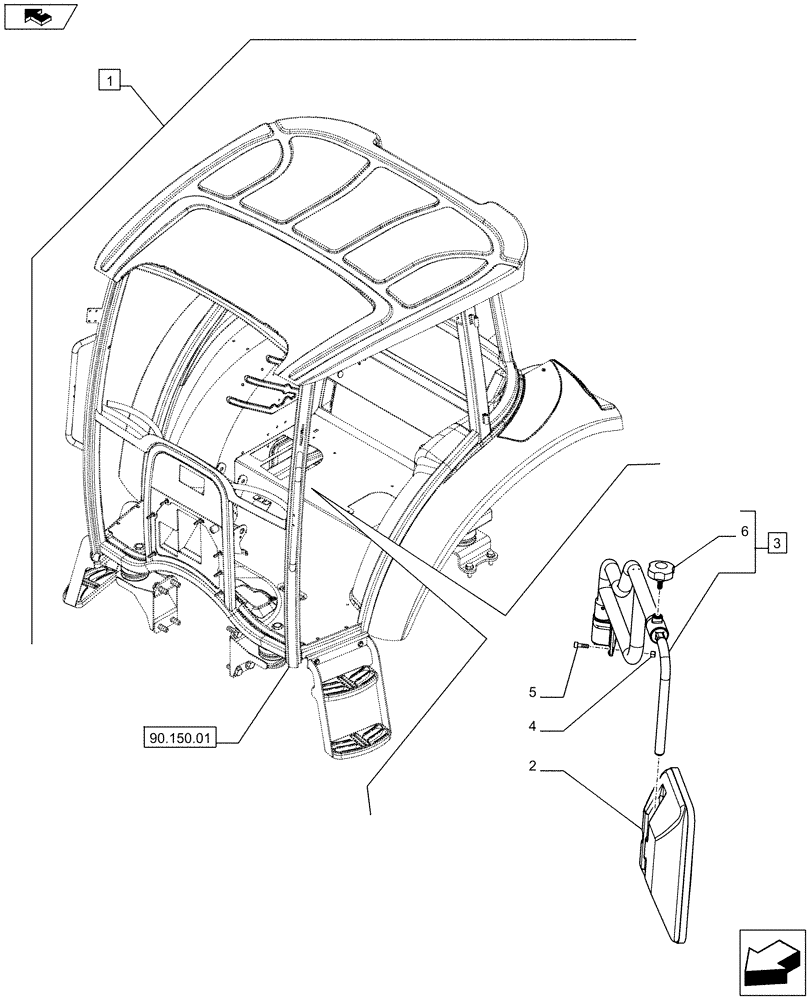

Схема запчастей Case IH FARMALL 65C - (88.088.04) - DIA KIT - 2 EXTERNAL MIRRORS TELESCOPIC - W/CAB (88) - ACCESSORIES
90.150.01
5
6
4
home
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710879250

DIA KIT, TRACTOR

2 External Mirrors Telescopic, Contains Ref. 2-6

1шт.

2

5091914

REAR VIEW MIRROR

2шт.

3

84268360

MIRROR ARM

ASSY, Contains Ref. 6

2шт.

4

12574211

NUT,M6 x 1, Cl 8

8шт.

5

14305431

HEX SOC SCREW,M6 x 25mm, Cl 10.9, Full Thd

8шт.

6

5080818

KNOB

1шт.
