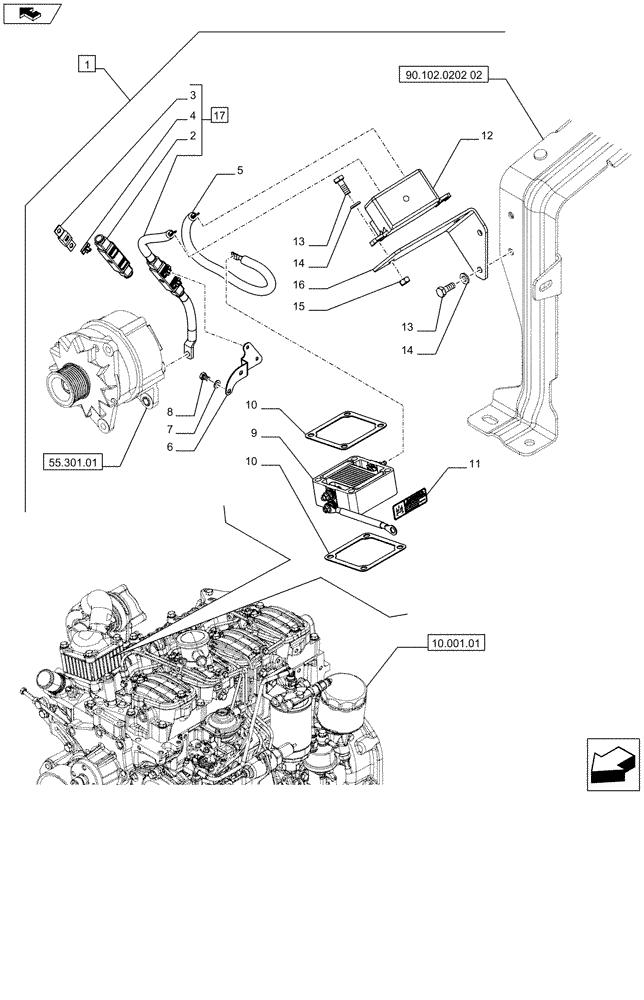

Запчасти Case IH FARMALL 65C (88.055.06) - DIA KIT - AIR HEATER (88) - ACCESSORIES

1

719216250

DIA KIT, TRACTOR

Engine Water Heater, Contains Ref. 2-17

1шт.

2

82027575

FUSE HOLDER

1шт.

3

11056290

FUSE,125A, Maxi

125A

1шт.

4

84161560

CLIP

2шт.

5

87737338

CABLE

1шт.

6

84294828

BRACKET

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

9

2831019

HEATER,24V

1шт.

10

4899921

GASKET,1.2mm Thk

2шт.

11

87803277

WARNING DECAL

1шт.

12

82022813

RELAY,12V, High Current

1шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

14

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

15

15896211

NUT,M6, Cl 8

2шт.

16

84279703

BRACKET

1шт.

17

84248838

ELECTRIC CABLE

ASSY, Contains Ref. 2-4

1шт.
